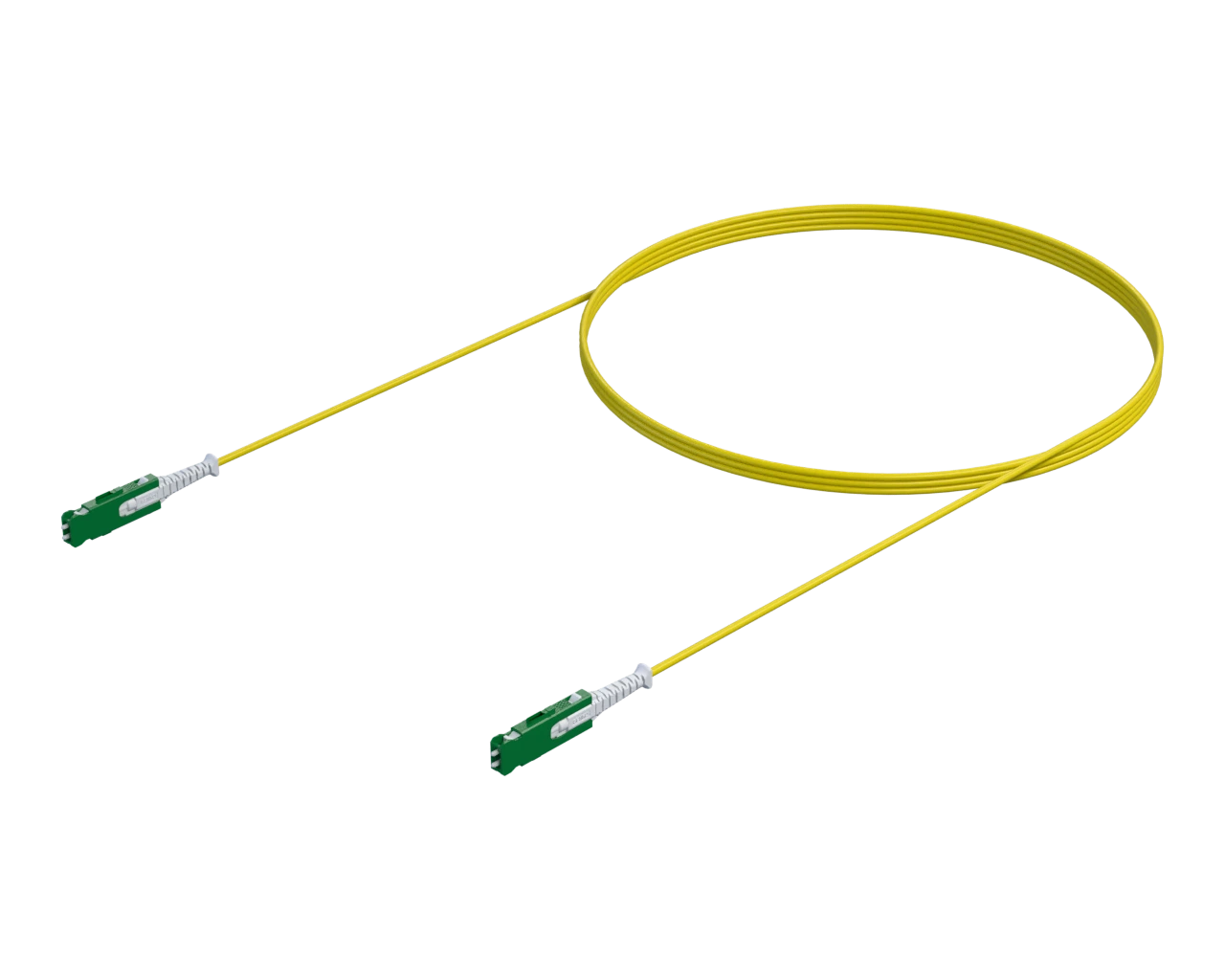

Optimised for ultra-high-density fibre networks, these 2mm round SN® duplex
patch leads combine robustness and flexibility, with superior optical
performance across a wide range of deployment environments. Each assembly

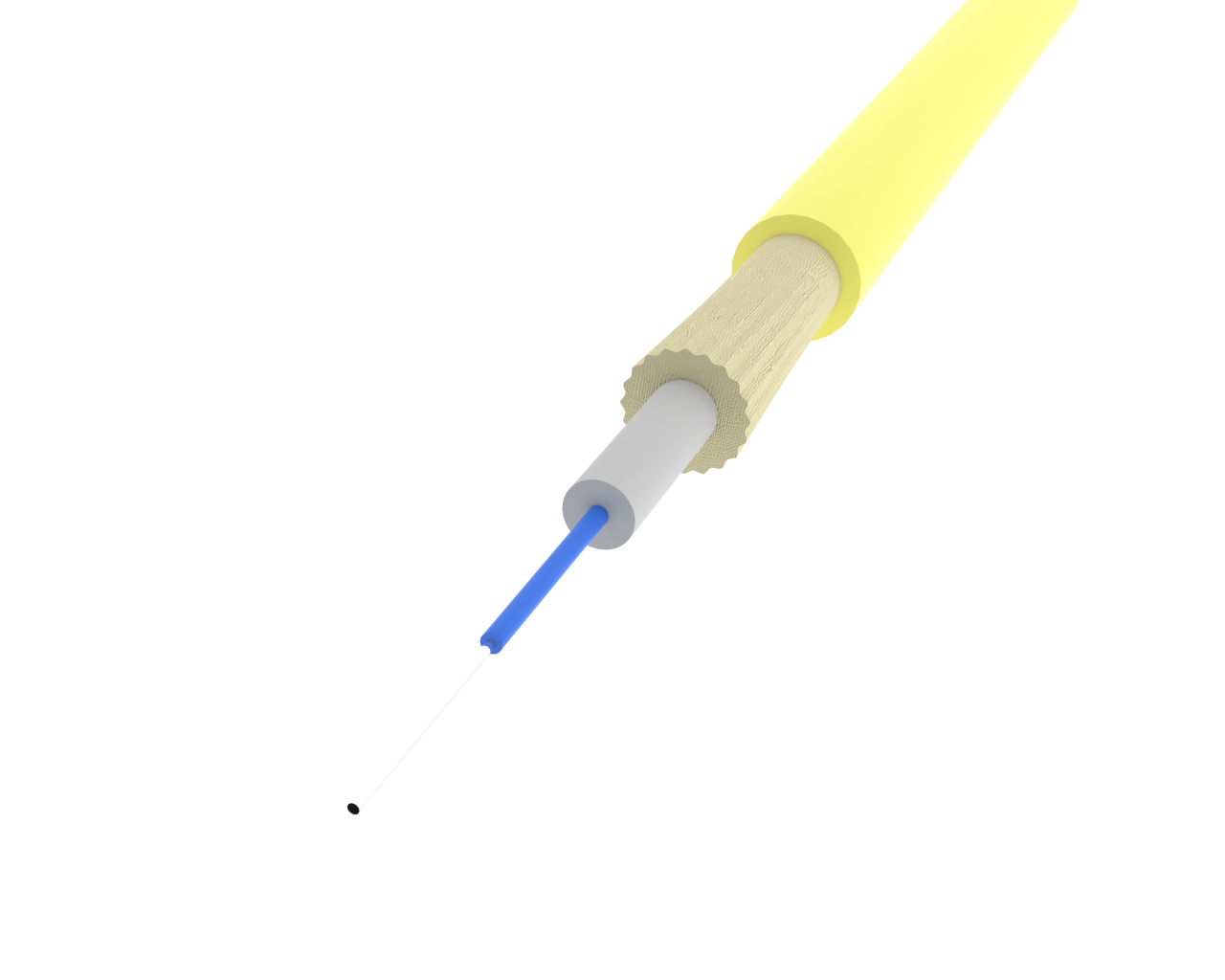

utilises two optical fibres enclosed in a single 2mm round LSZH jacket, ideal
for backbone links, patch panels, cross-connects, and direct equipment
terminations.

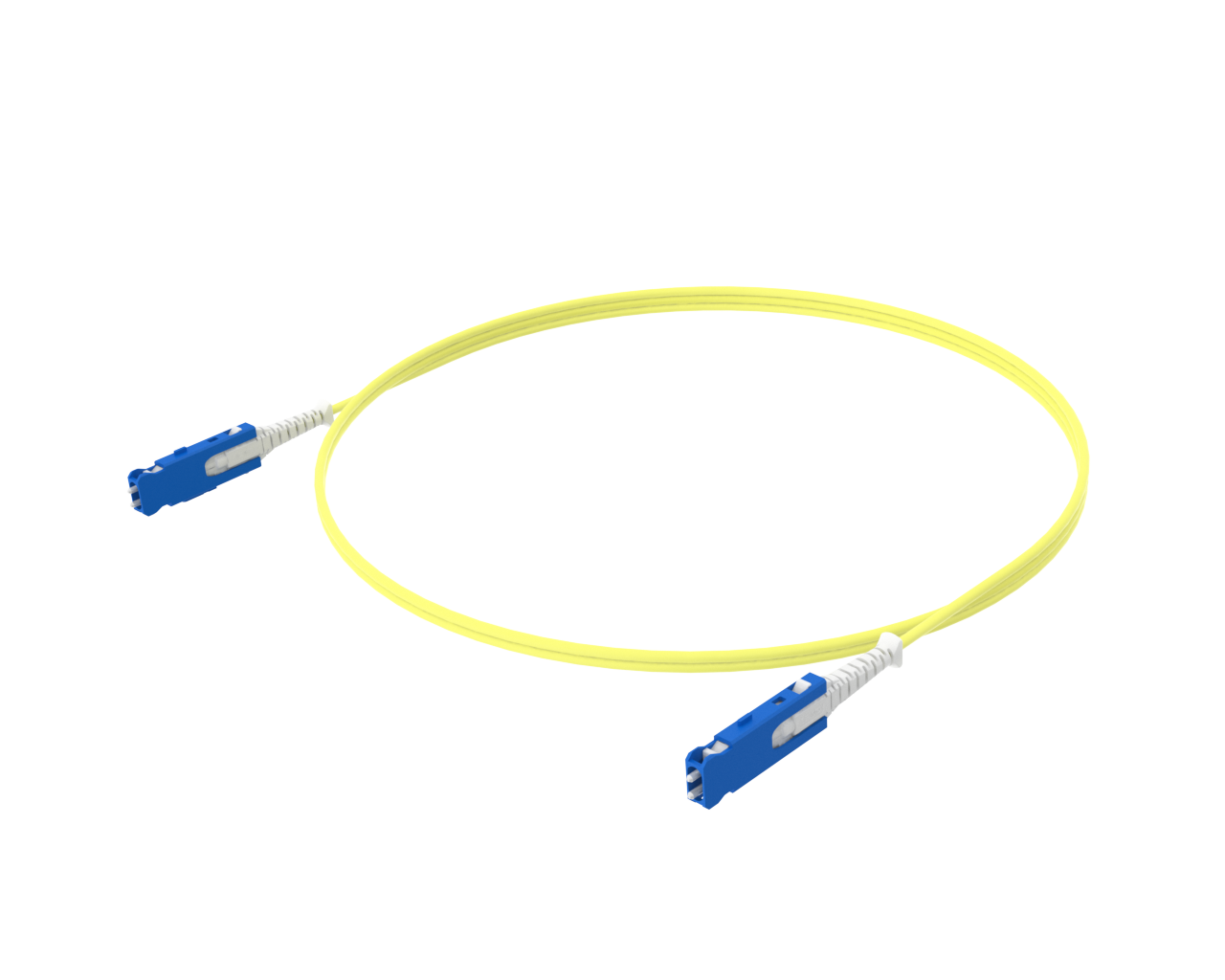

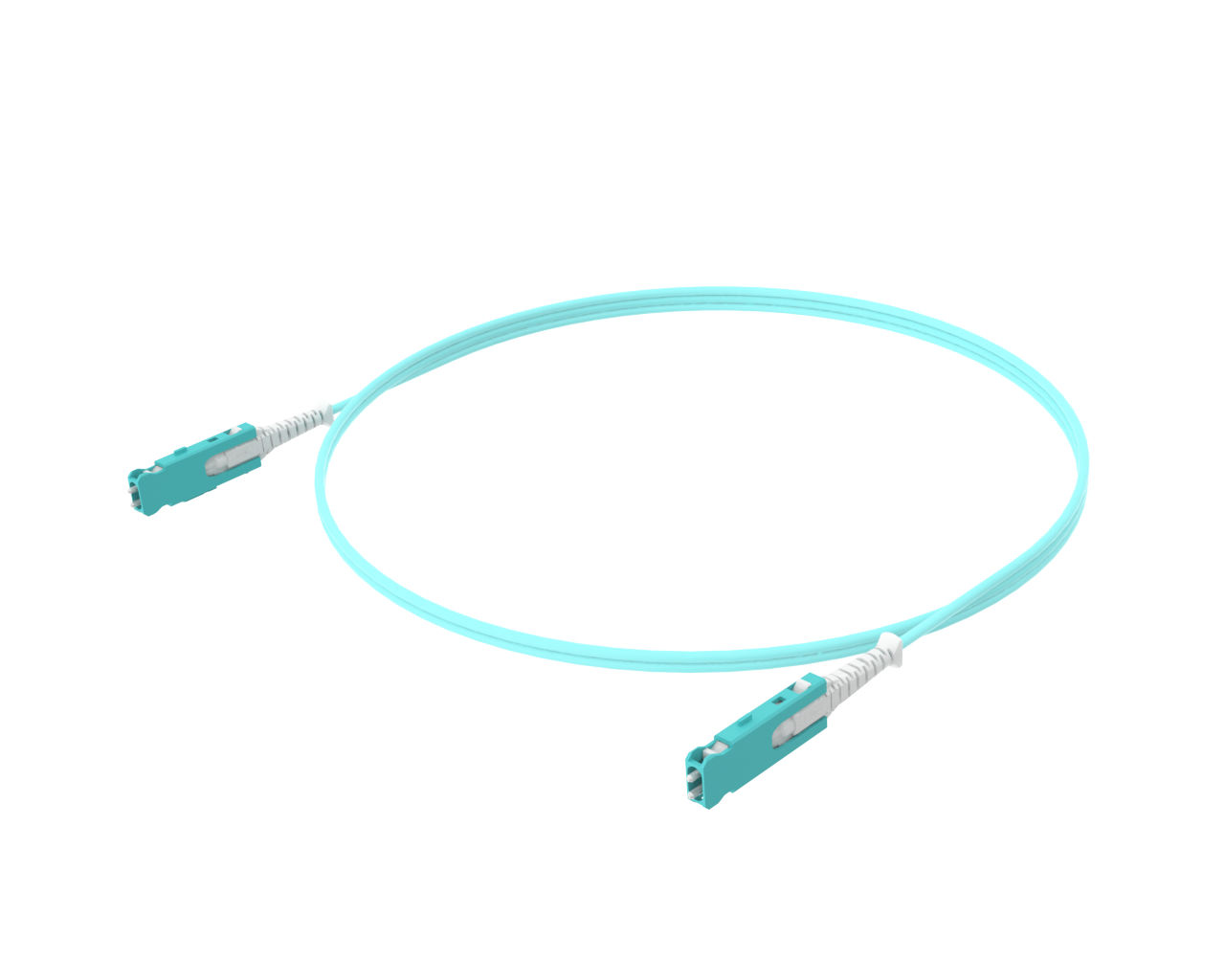

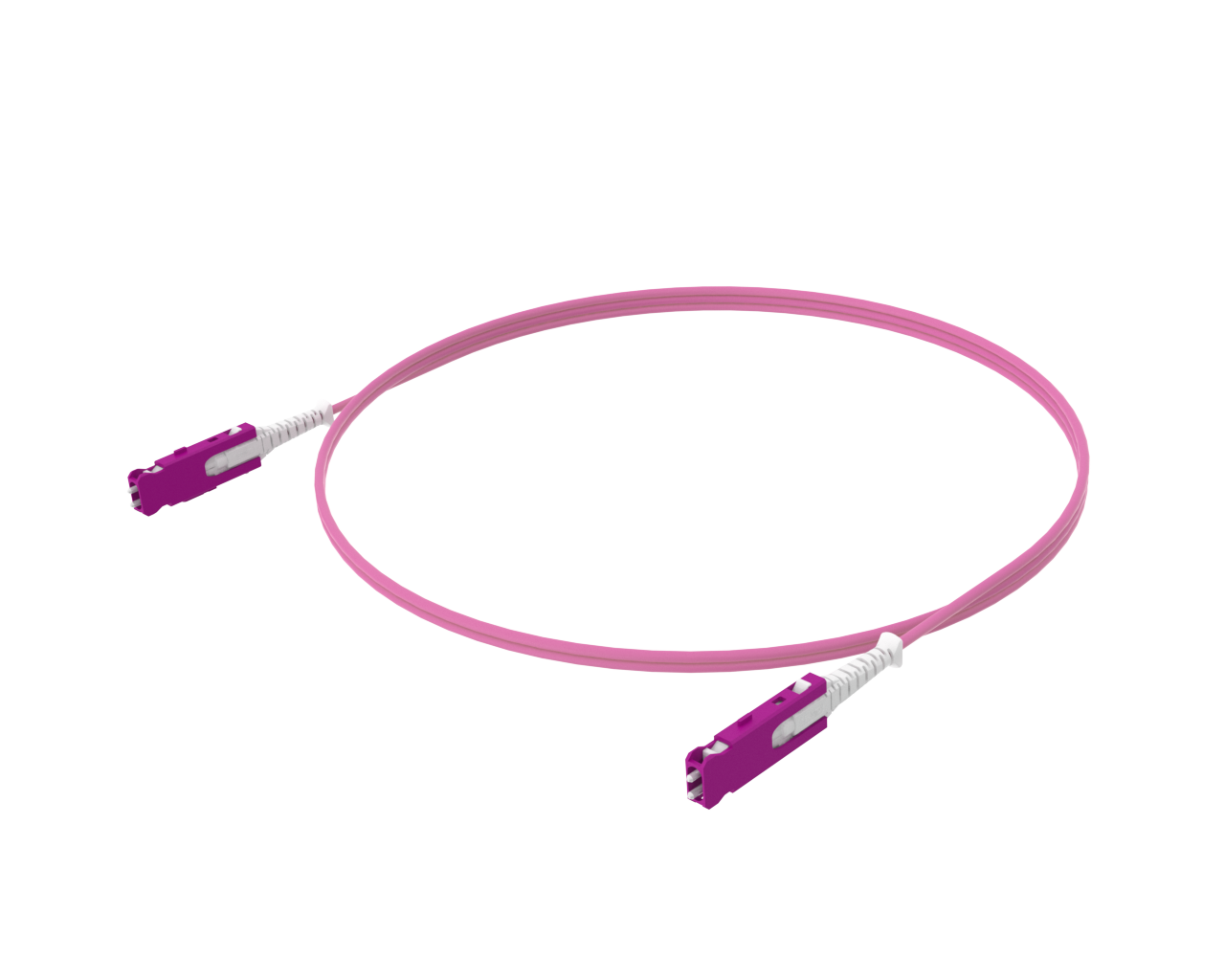

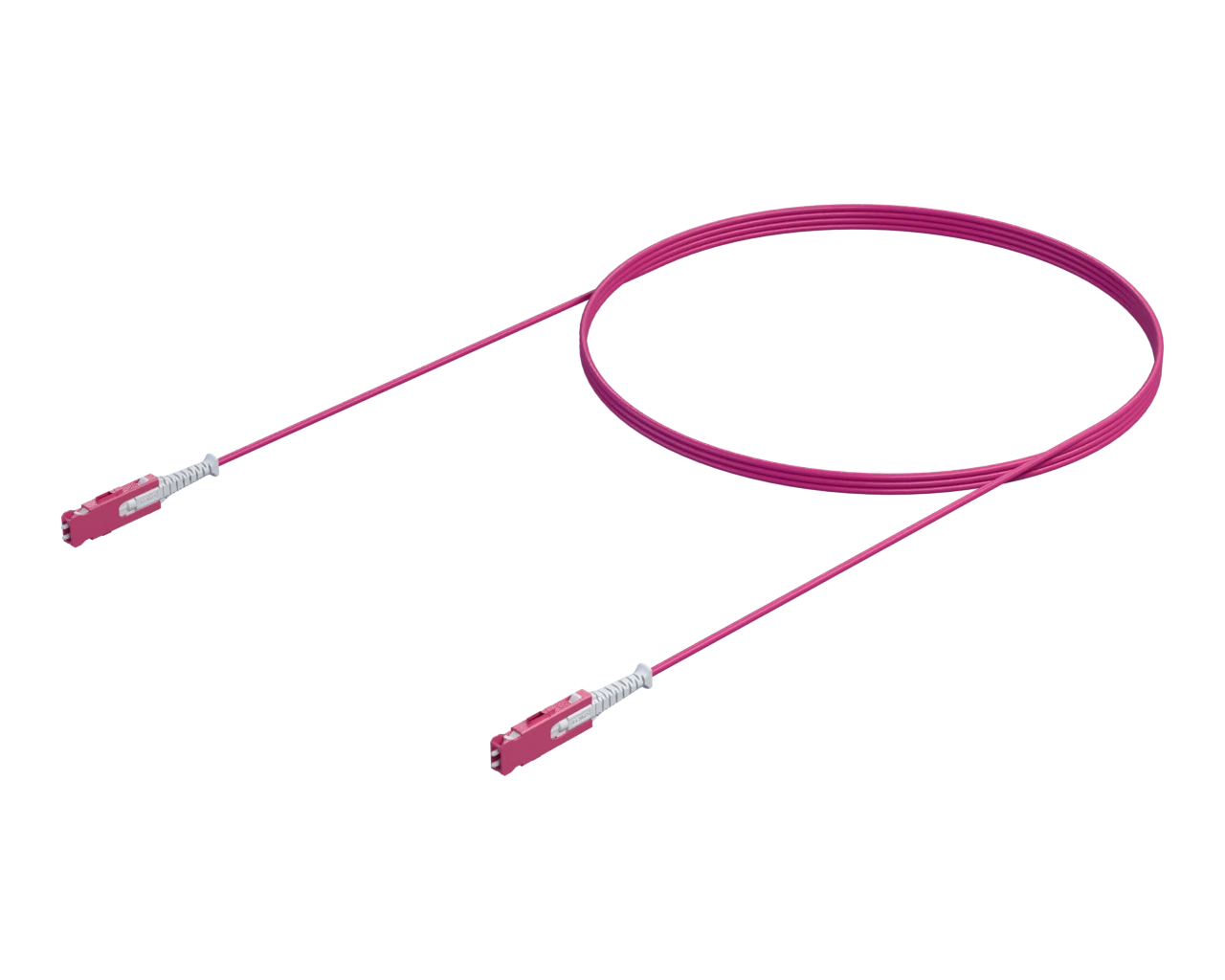

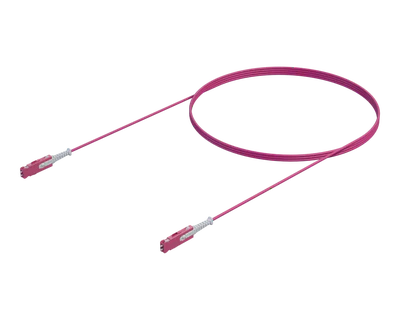

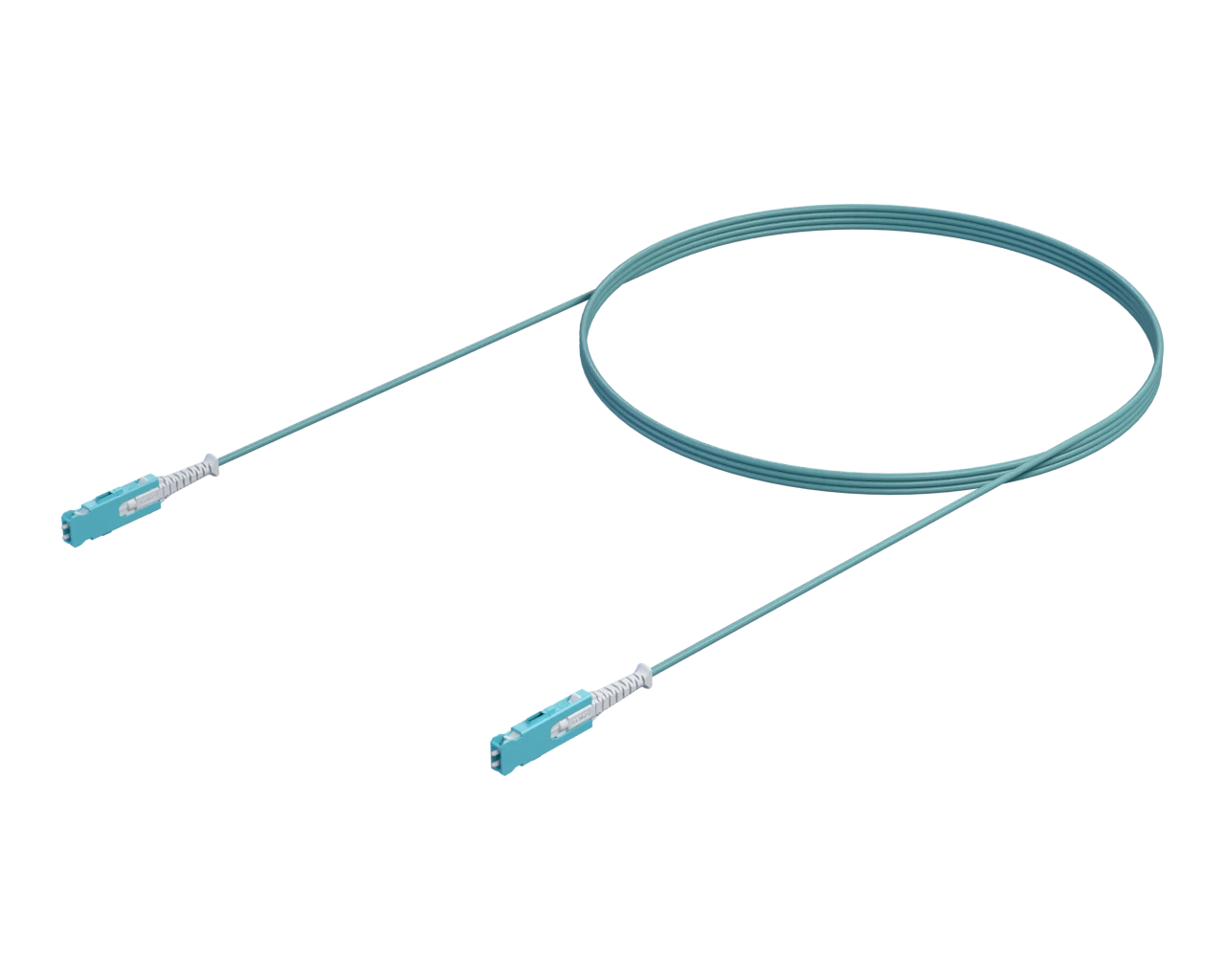

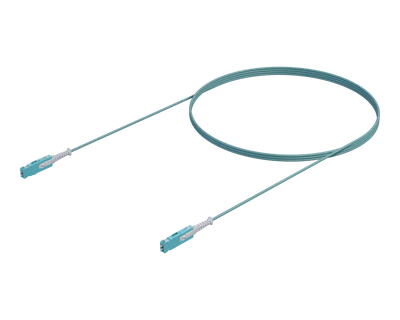

Available in single-mode (OS2) and multimode (OM4, OM5)
fibre types, all assemblies are precision-terminated with SN® connectors and
factory-tested to rigorous international standards including GR-326, TIA/EIA,
and IEC — delivering proven low-loss, high-reliability performance.
SN® and
Senko® are registered trademarks of SENKO
Advanced Components, Inc. All other trademarks are the property of their
respective owners.
Intended for next-generation 400G and 800G transceiver fanout across the
GCC AI compute clusters (Dubai, Abu Dhabi, Riyadh), with applications in
Vision 2030 sovereign AI training fabrics across NEOM and The Line.
Technical Specifications
Fibre Type
Single-mode (OS2), Multimode (OM4, OM5)
Configuration

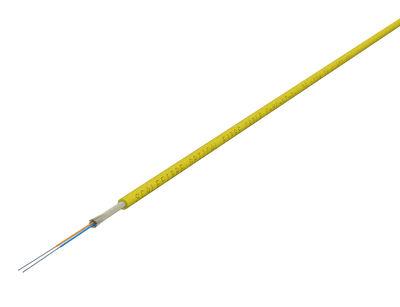

Duplex (2 fibres within a single 2mm round cord)
Connector Types

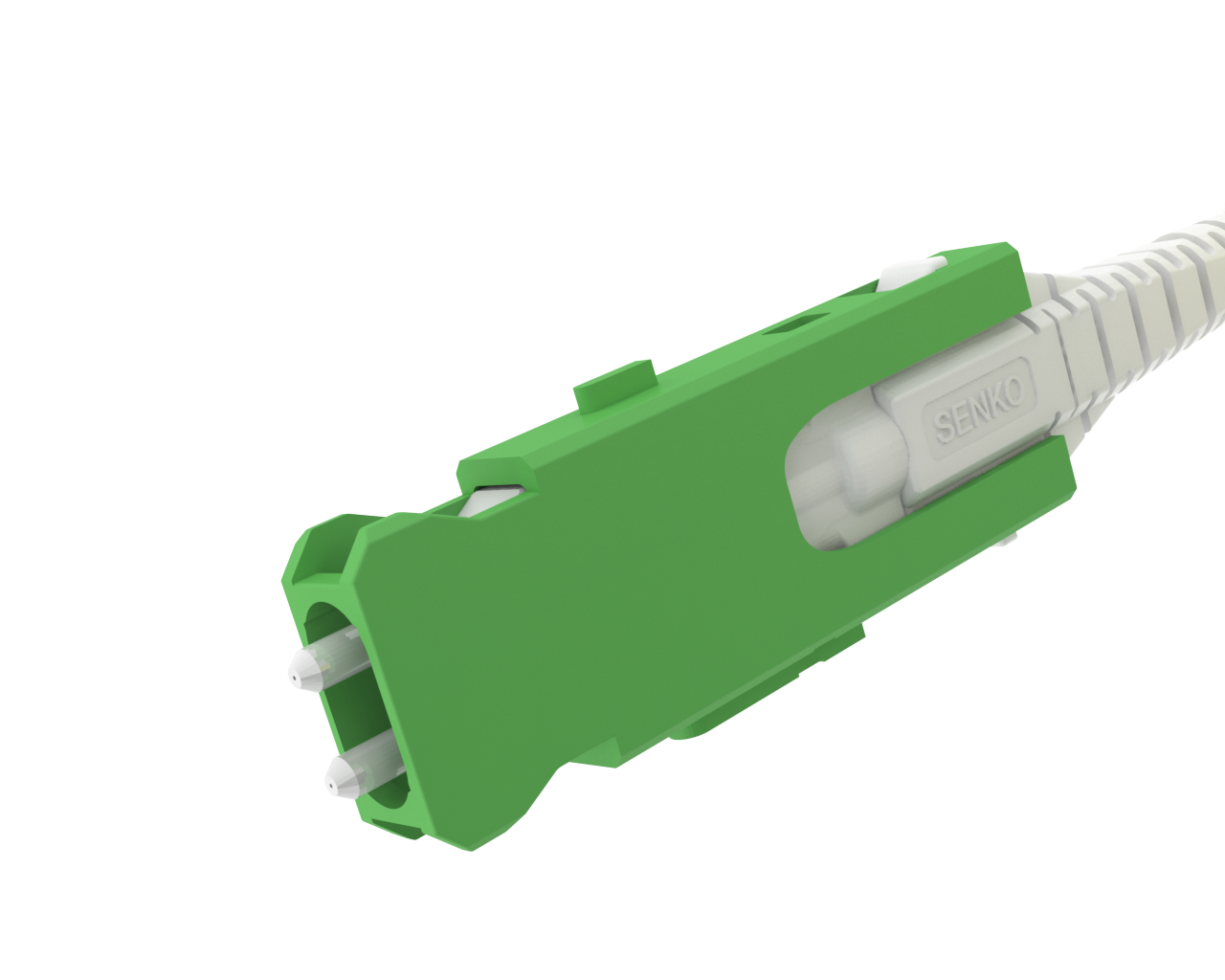

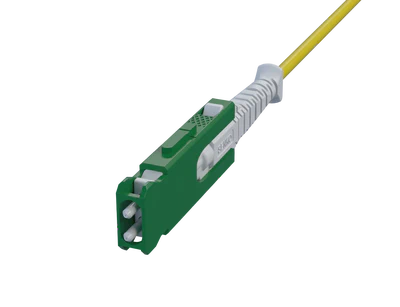

SN® (Senko®)
Polish Options

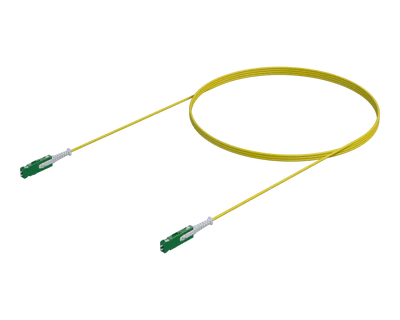

UPC or APC (single-mode only)
Insertion Loss
≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
