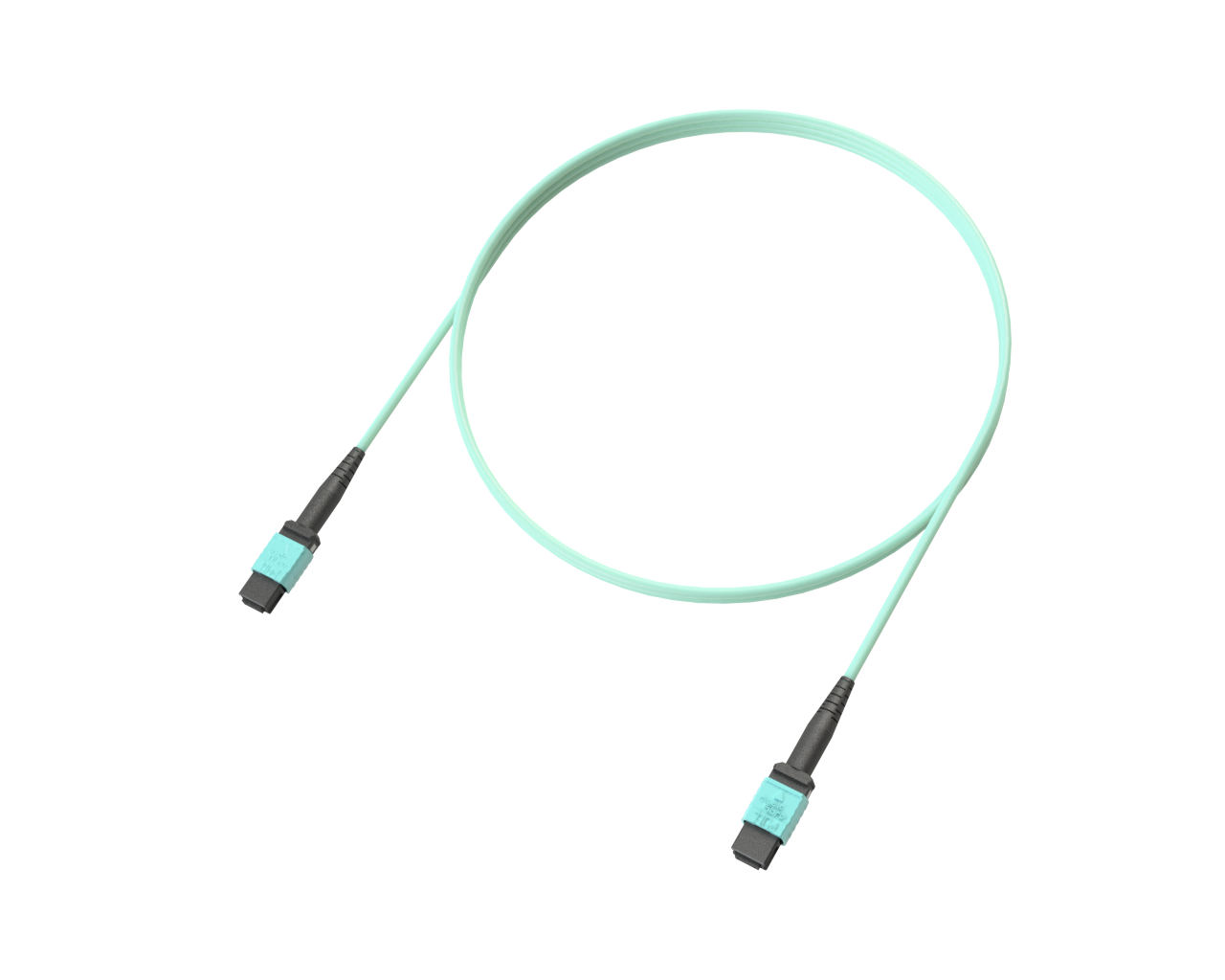

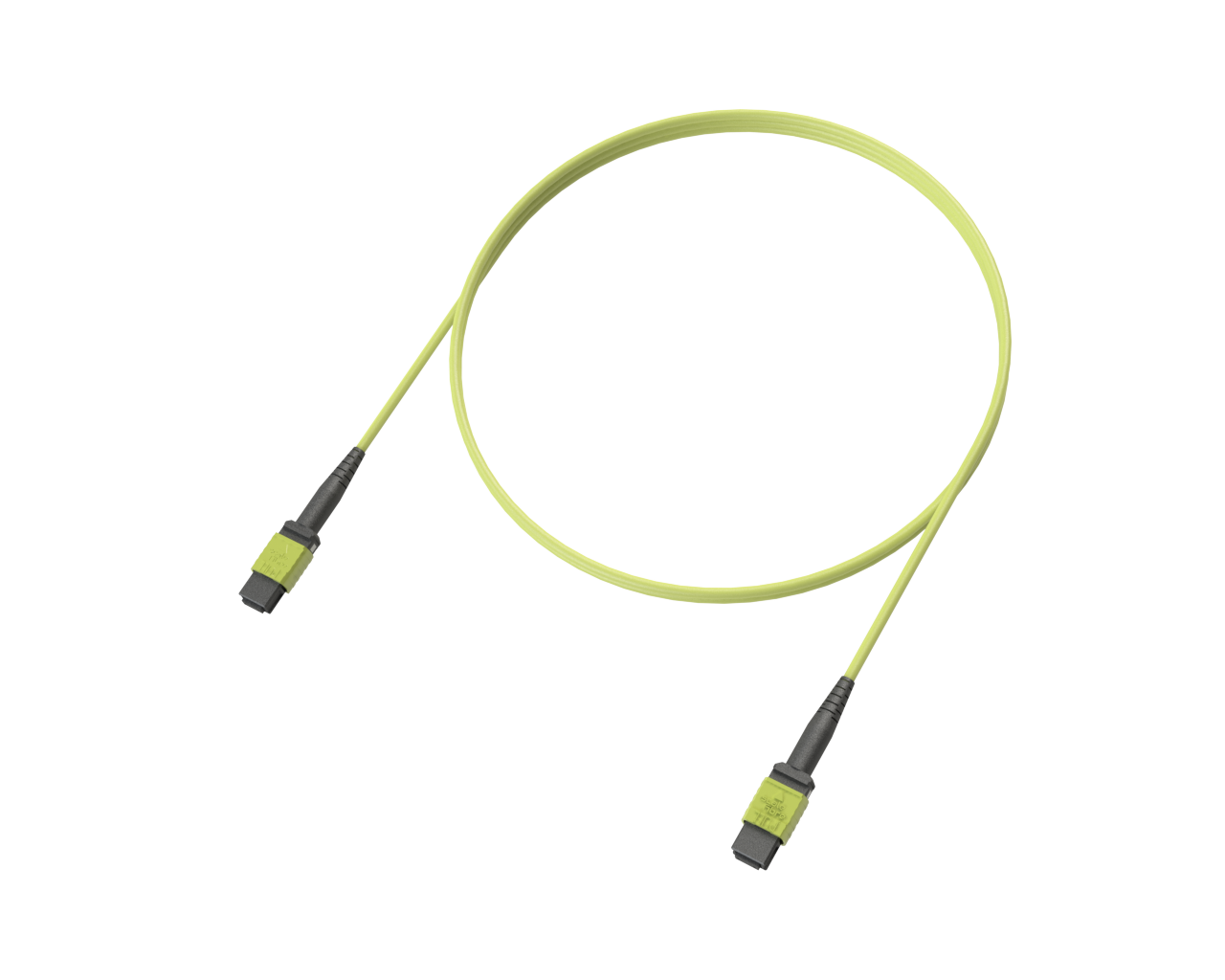

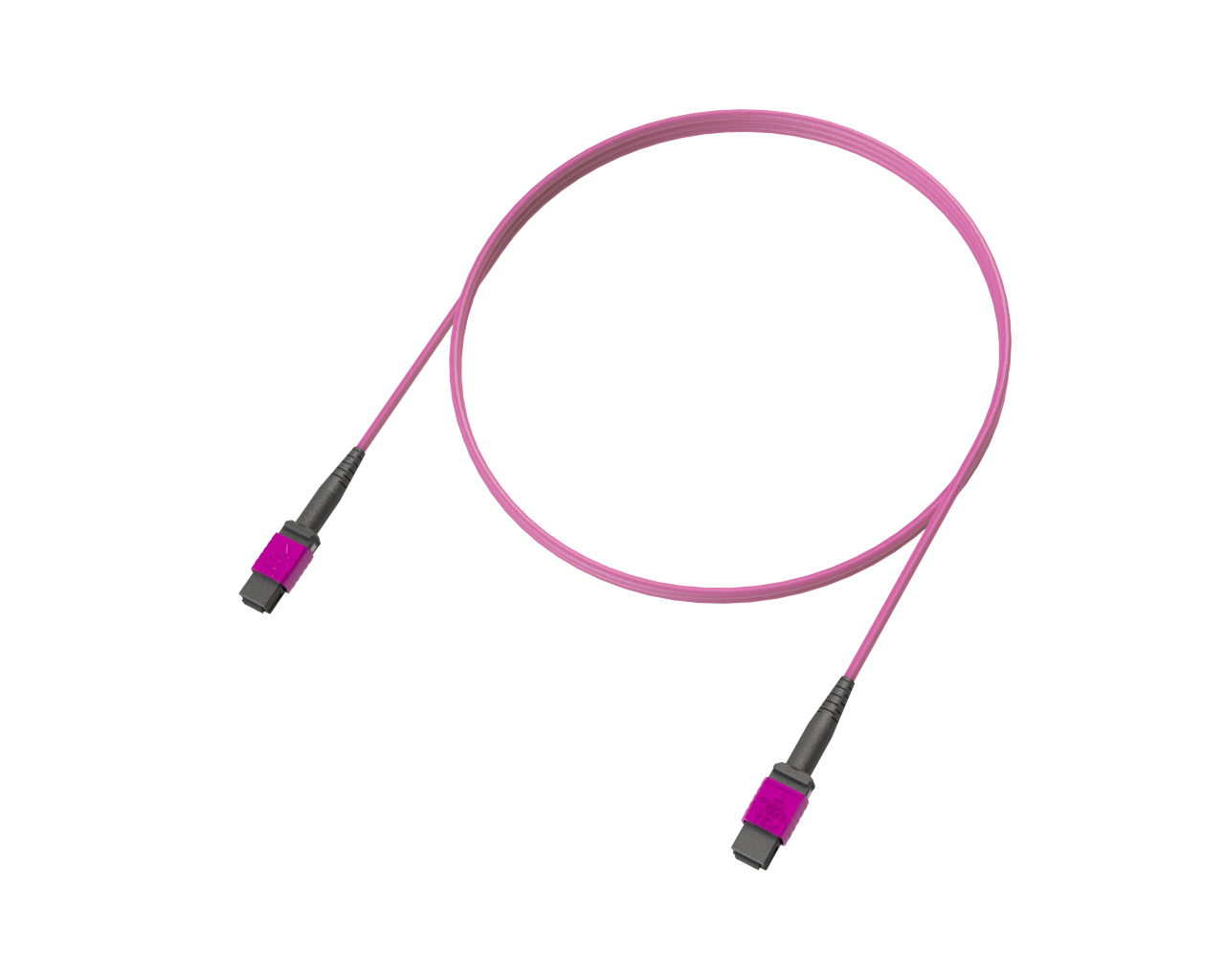

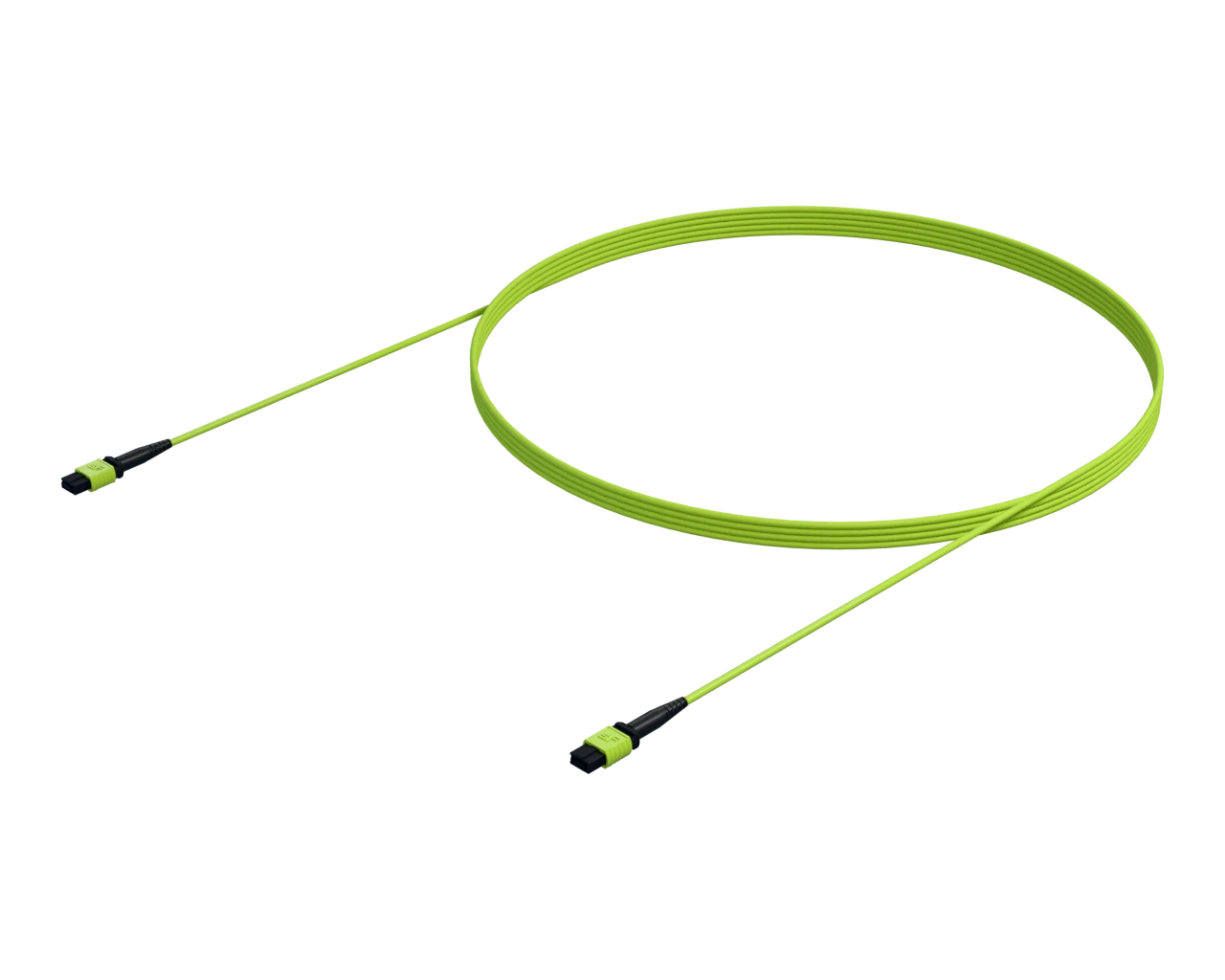

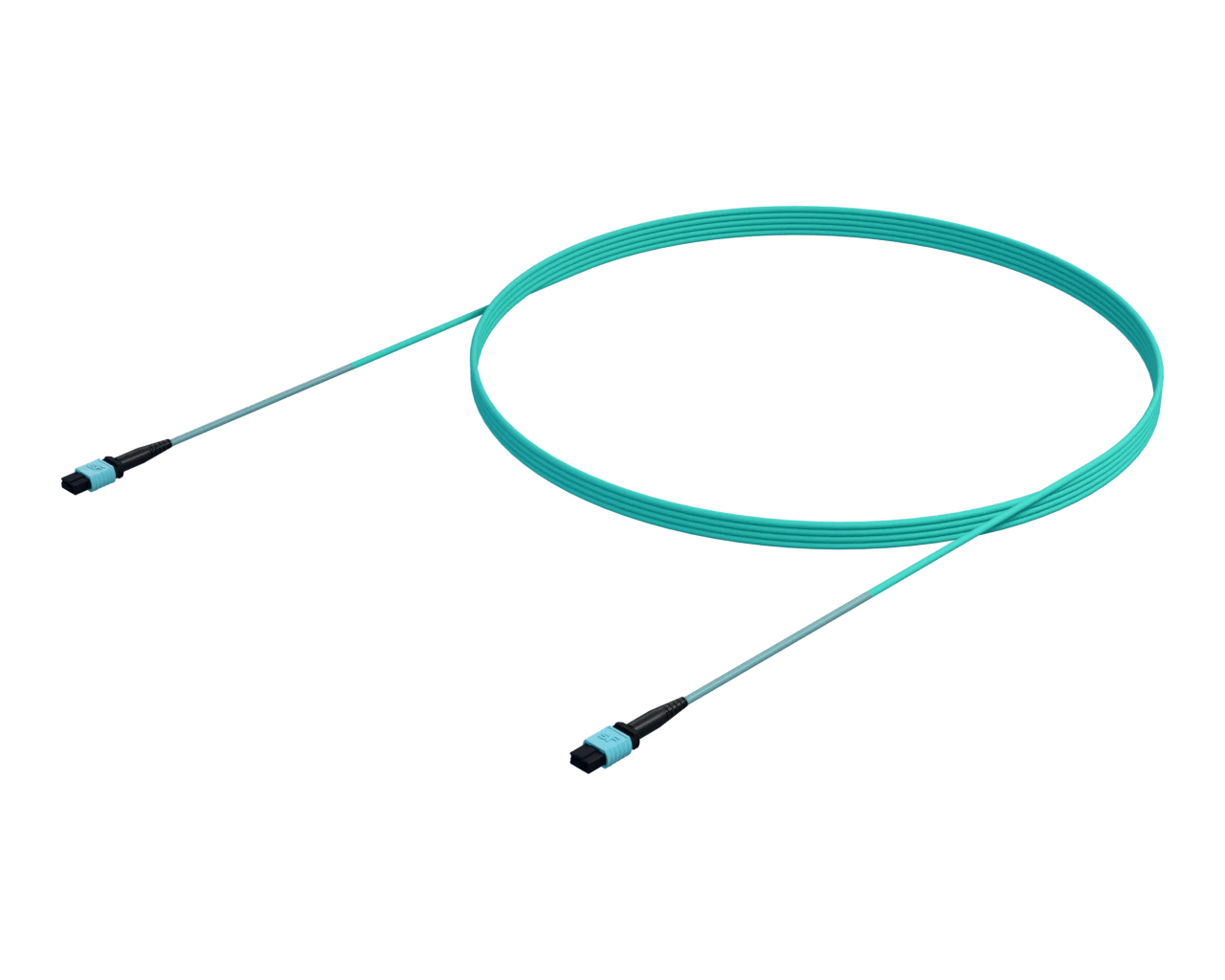

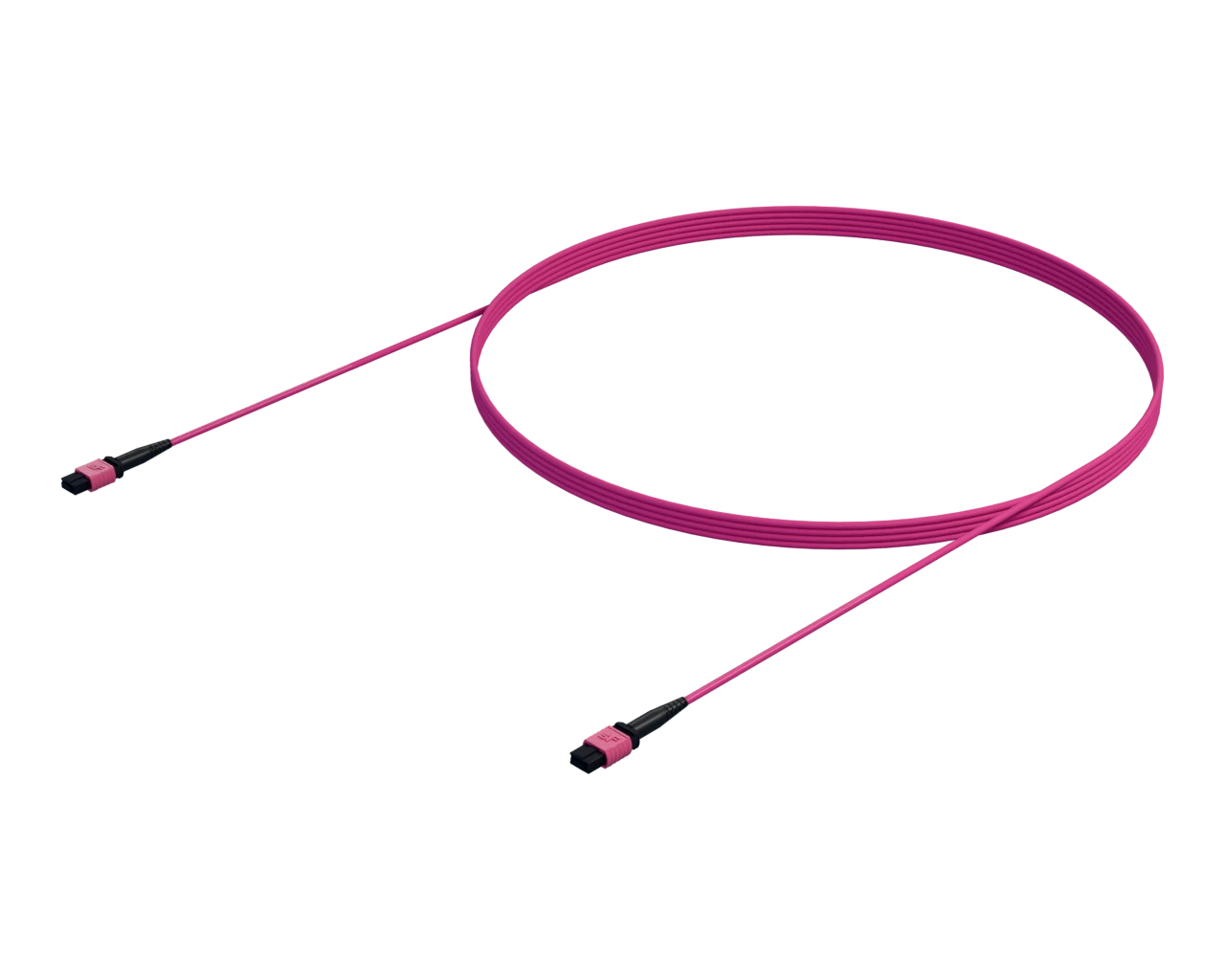

High-density MPO trunk cable with 8 to 24 fibres. Compact, factory-tested, and ideal for short-run backbone and patching in enterprise or edge networks.

Supports 8 to 24 fibres per trunk
Available with MPO-8, MPO-12 or MPO-24 connectors
Factory terminated and 100% IL/RL tested
LSZH outer jacket
Ideal for patching, zone distribution, and backbone extensions
Simplifies installation and reduces rackspace usage

Category: Optical Cable Assemblies, MPO Trunks

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

Small Fibre Count MPO trunk cables are optimised for short-range backbone, cross-connect, and patching applications. Available from 8 to 24 fibres, these assemblies offer a compact and reliable solution for enterprise networks, edge cabinets, and access-layer switching.

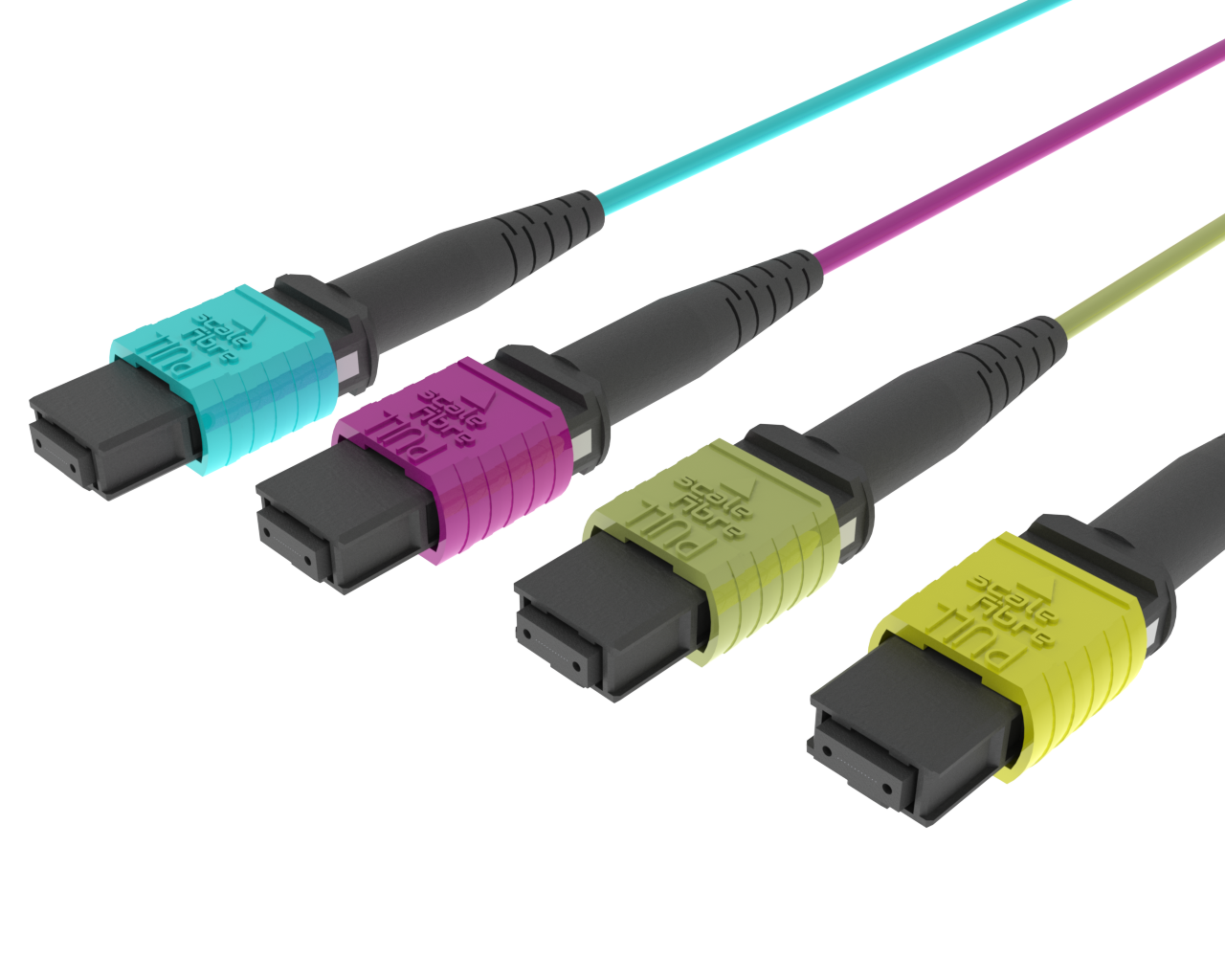

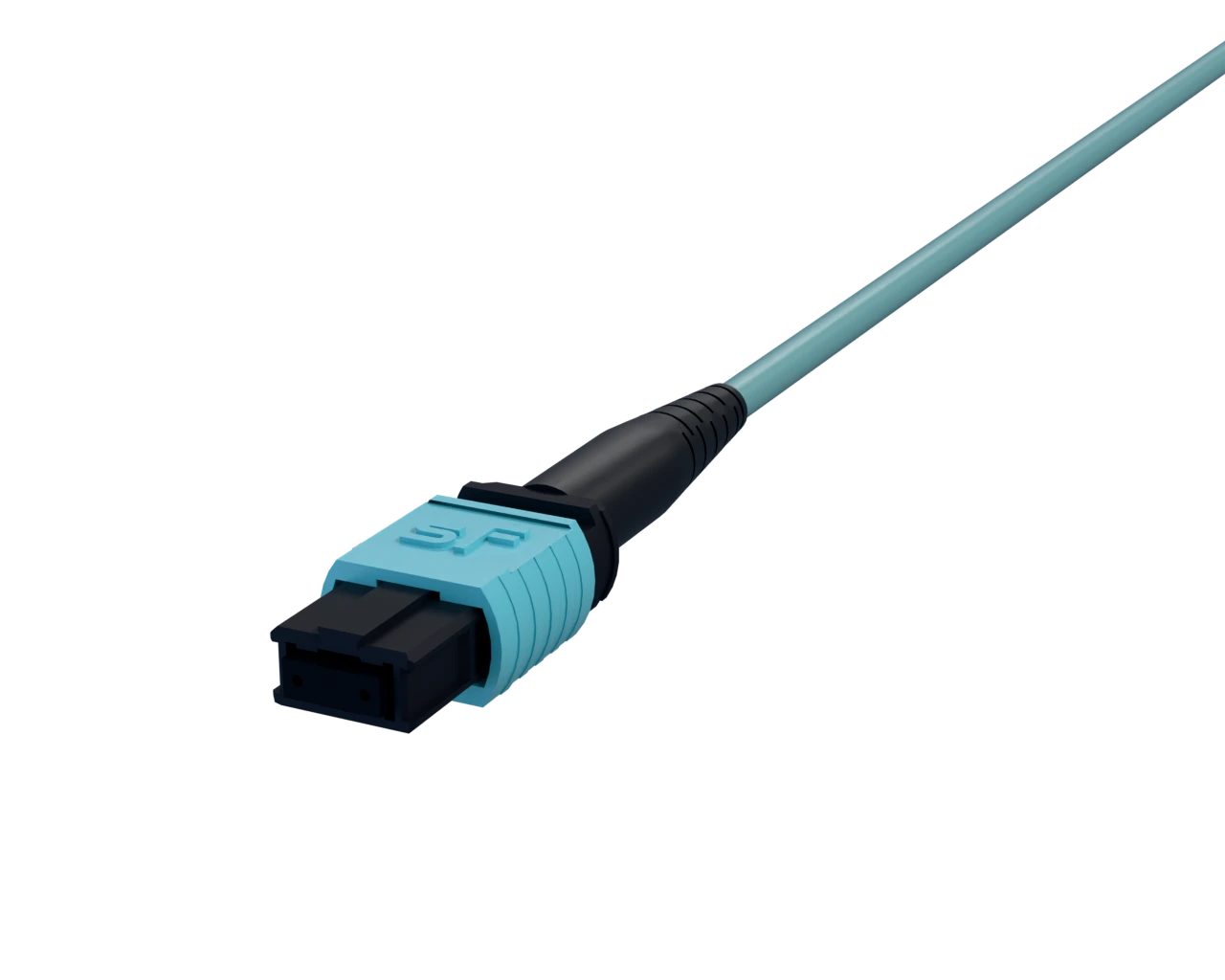

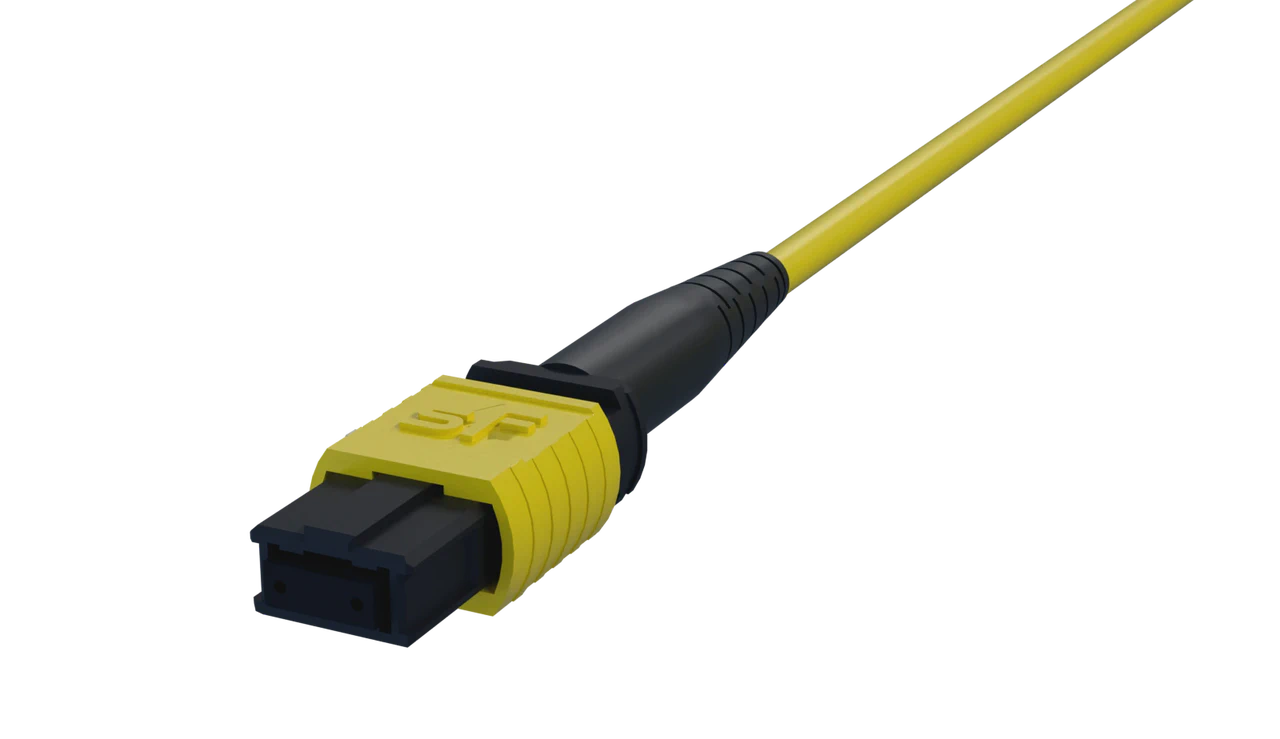

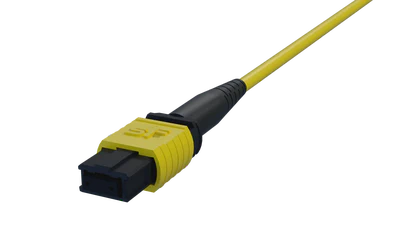

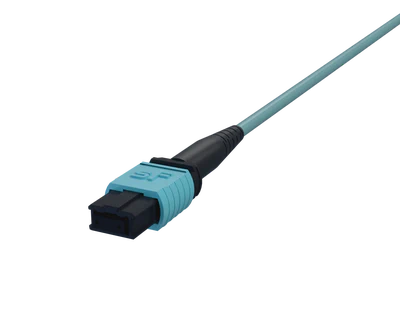

Terminated with ScaleFibre MPO-12 or MPO-24 connectors, they are designed for structured cabling systems where density, ease of installation, and repeatable performance are critical. All assemblies are factory tested to ensure low insertion loss and high return loss.

Sheath options include LSZH and CPR ratings to support diverse installation environments. These cables enable efficient moves, adds, and changes in core, horizontal, and distribution layers.

General
Connector Types	MPO-8, MPO-12, MPO-24 (male or female, pinned or unpinned) MTP® available upon request
Fibre Count Range	12 to 24 fibres per trunk
Polarity Options	Type A, B or C

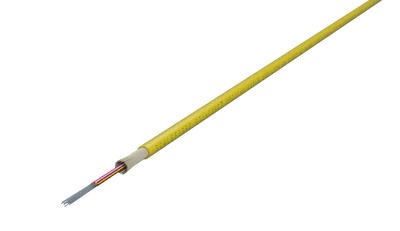

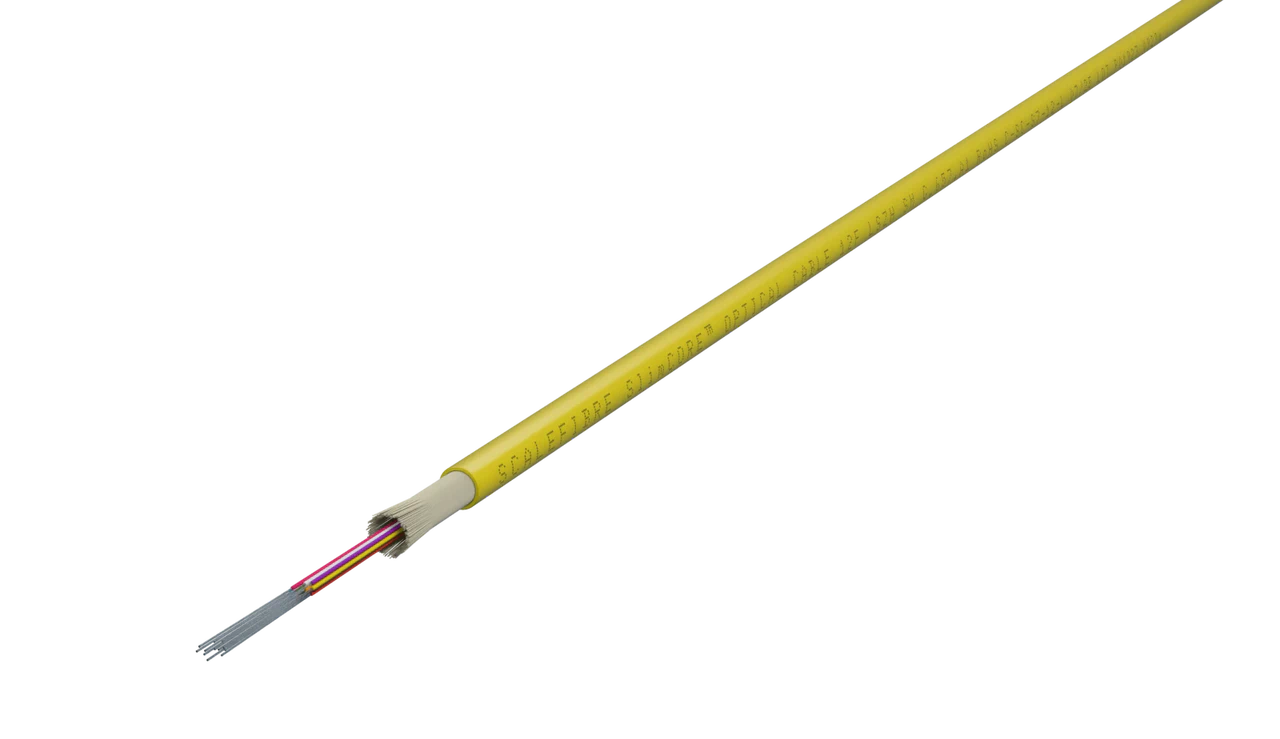

Cable Specification
Jacket Material	Low Smoke Zero Halogen (LSZH)

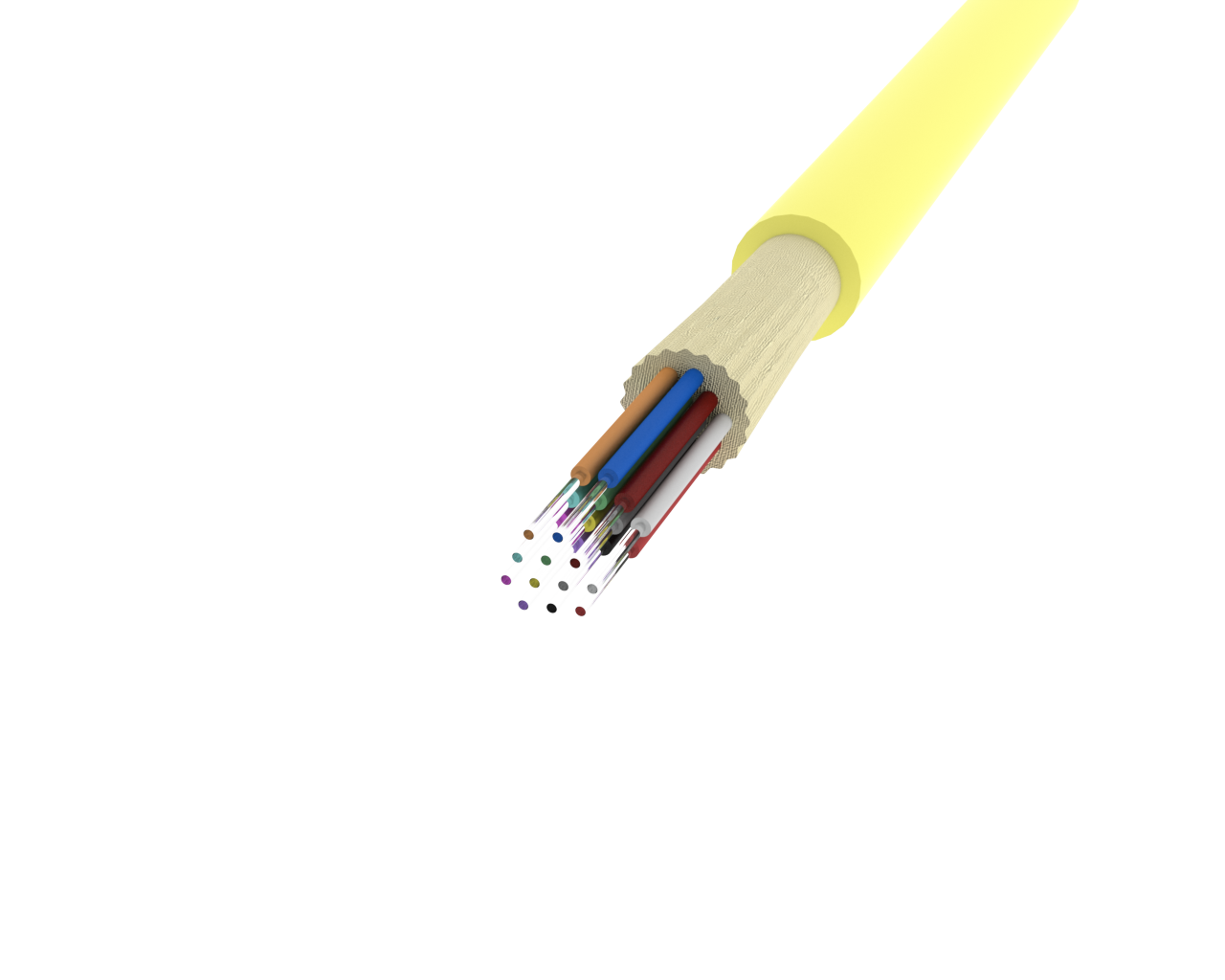

Cable Diameter	3mm
Fibre Type	Single-mode OS2 Multimode OM3/OM4/OM5
Insertion Loss	≤0.35 dB per connector
Return Loss	≥60 dB (SM); ≥30 dB (MM)
Operating Temperature	-20°C to +70°C
Compliance	TIA/EIA-568, IEC 61754-7, FOCIS, RoHS, REACH

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity A, LSZH
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-A-3M	3
MT-S7-8-MP8F-MP8F-A-5M	5
MT-S7-8-MP8F-MP8F-A-10M	10
MT-S7-8-MP8F-MP8F-A-15M	15
MT-S7-8-MP8F-MP8F-A-20M	20
MT-S7-8-MP8F-MP8F-A-25M	25
MT-S7-8-MP8F-MP8F-A-30M	30
MT-S7-8-MP8F-MP8F-A-35M	35
MT-S7-8-MP8F-MP8F-A-40M	40
MT-S7-8-MP8F-MP8F-A-45M	45
MT-S7-8-MP8F-MP8F-A-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity B, LSZH
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-B-3M	3
MT-S7-8-MP8F-MP8F-B-5M	5
MT-S7-8-MP8F-MP8F-B-10M	10
MT-S7-8-MP8F-MP8F-B-15M	15
MT-S7-8-MP8F-MP8F-B-20M	20
MT-S7-8-MP8F-MP8F-B-25M	25
MT-S7-8-MP8F-MP8F-B-30M	30
MT-S7-8-MP8F-MP8F-B-35M	35
MT-S7-8-MP8F-MP8F-B-40M	40
MT-S7-8-MP8F-MP8F-B-45M	45
MT-S7-8-MP8F-MP8F-B-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity C, LSZH
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-C-3M	3
MT-S7-8-MP8F-MP8F-C-5M	5
MT-S7-8-MP8F-MP8F-C-10M	10
MT-S7-8-MP8F-MP8F-C-15M	15
MT-S7-8-MP8F-MP8F-C-20M	20
MT-S7-8-MP8F-MP8F-C-25M	25
MT-S7-8-MP8F-MP8F-C-30M	30
MT-S7-8-MP8F-MP8F-C-35M	35
MT-S7-8-MP8F-MP8F-C-40M	40
MT-S7-8-MP8F-MP8F-C-45M	45
MT-S7-8-MP8F-MP8F-C-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-A-3M-C000	3
MT-S7-8-MP8F-MP8F-A-5M-C000	5
MT-S7-8-MP8F-MP8F-A-10M-C000	10
MT-S7-8-MP8F-MP8F-A-15M-C000	15
MT-S7-8-MP8F-MP8F-A-20M-C000	20
MT-S7-8-MP8F-MP8F-A-25M-C000	25
MT-S7-8-MP8F-MP8F-A-30M-C000	30
MT-S7-8-MP8F-MP8F-A-35M-C000	35
MT-S7-8-MP8F-MP8F-A-40M-C000	40
MT-S7-8-MP8F-MP8F-A-45M-C000	45
MT-S7-8-MP8F-MP8F-A-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-B-3M-C000	3
MT-S7-8-MP8F-MP8F-B-5M-C000	5
MT-S7-8-MP8F-MP8F-B-10M-C000	10
MT-S7-8-MP8F-MP8F-B-15M-C000	15
MT-S7-8-MP8F-MP8F-B-20M-C000	20
MT-S7-8-MP8F-MP8F-B-25M-C000	25
MT-S7-8-MP8F-MP8F-B-30M-C000	30
MT-S7-8-MP8F-MP8F-B-35M-C000	35
MT-S7-8-MP8F-MP8F-B-40M-C000	40
MT-S7-8-MP8F-MP8F-B-45M-C000	45
MT-S7-8-MP8F-MP8F-B-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-S7-8-MP8F-MP8F-C-3M-C000	3
MT-S7-8-MP8F-MP8F-C-5M-C000	5
MT-S7-8-MP8F-MP8F-C-10M-C000	10
MT-S7-8-MP8F-MP8F-C-15M-C000	15
MT-S7-8-MP8F-MP8F-C-20M-C000	20
MT-S7-8-MP8F-MP8F-C-25M-C000	25
MT-S7-8-MP8F-MP8F-C-30M-C000	30
MT-S7-8-MP8F-MP8F-C-35M-C000	35
MT-S7-8-MP8F-MP8F-C-40M-C000	40
MT-S7-8-MP8F-MP8F-C-45M-C000	45
MT-S7-8-MP8F-MP8F-C-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-A-3M	3
MT-S7-12-MPOF-MPOF-A-5M	5
MT-S7-12-MPOF-MPOF-A-10M	10
MT-S7-12-MPOF-MPOF-A-15M	15
MT-S7-12-MPOF-MPOF-A-20M	20
MT-S7-12-MPOF-MPOF-A-25M	25
MT-S7-12-MPOF-MPOF-A-30M	30
MT-S7-12-MPOF-MPOF-A-35M	35
MT-S7-12-MPOF-MPOF-A-40M	40
MT-S7-12-MPOF-MPOF-A-45M	45
MT-S7-12-MPOF-MPOF-A-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-B-3M	3
MT-S7-12-MPOF-MPOF-B-5M	5
MT-S7-12-MPOF-MPOF-B-10M	10
MT-S7-12-MPOF-MPOF-B-15M	15
MT-S7-12-MPOF-MPOF-B-20M	20
MT-S7-12-MPOF-MPOF-B-25M	25
MT-S7-12-MPOF-MPOF-B-30M	30
MT-S7-12-MPOF-MPOF-B-35M	35
MT-S7-12-MPOF-MPOF-B-40M	40
MT-S7-12-MPOF-MPOF-B-45M	45
MT-S7-12-MPOF-MPOF-B-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-C-3M	3
MT-S7-12-MPOF-MPOF-C-5M	5
MT-S7-12-MPOF-MPOF-C-10M	10
MT-S7-12-MPOF-MPOF-C-15M	15
MT-S7-12-MPOF-MPOF-C-20M	20
MT-S7-12-MPOF-MPOF-C-25M	25
MT-S7-12-MPOF-MPOF-C-30M	30
MT-S7-12-MPOF-MPOF-C-35M	35
MT-S7-12-MPOF-MPOF-C-40M	40
MT-S7-12-MPOF-MPOF-C-45M	45
MT-S7-12-MPOF-MPOF-C-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-A-3M-C000	3
MT-S7-12-MPOF-MPOF-A-5M-C000	5
MT-S7-12-MPOF-MPOF-A-10M-C000	10
MT-S7-12-MPOF-MPOF-A-15M-C000	15
MT-S7-12-MPOF-MPOF-A-20M-C000	20
MT-S7-12-MPOF-MPOF-A-25M-C000	25
MT-S7-12-MPOF-MPOF-A-30M-C000	30
MT-S7-12-MPOF-MPOF-A-35M-C000	35
MT-S7-12-MPOF-MPOF-A-40M-C000	40
MT-S7-12-MPOF-MPOF-A-45M-C000	45
MT-S7-12-MPOF-MPOF-A-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-B-3M-C000	3
MT-S7-12-MPOF-MPOF-B-5M-C000	5
MT-S7-12-MPOF-MPOF-B-10M-C000	10
MT-S7-12-MPOF-MPOF-B-15M-C000	15
MT-S7-12-MPOF-MPOF-B-20M-C000	20
MT-S7-12-MPOF-MPOF-B-25M-C000	25
MT-S7-12-MPOF-MPOF-B-30M-C000	30
MT-S7-12-MPOF-MPOF-B-35M-C000	35
MT-S7-12-MPOF-MPOF-B-40M-C000	40
MT-S7-12-MPOF-MPOF-B-45M-C000	45
MT-S7-12-MPOF-MPOF-B-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-S7-12-MPOF-MPOF-C-3M-C000	3
MT-S7-12-MPOF-MPOF-C-5M-C000	5
MT-S7-12-MPOF-MPOF-C-10M-C000	10
MT-S7-12-MPOF-MPOF-C-15M-C000	15
MT-S7-12-MPOF-MPOF-C-20M-C000	20
MT-S7-12-MPOF-MPOF-C-25M-C000	25
MT-S7-12-MPOF-MPOF-C-30M-C000	30
MT-S7-12-MPOF-MPOF-C-35M-C000	35
MT-S7-12-MPOF-MPOF-C-40M-C000	40
MT-S7-12-MPOF-MPOF-C-45M-C000	45
MT-S7-12-MPOF-MPOF-C-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity A, LSZH
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-A-3M	3
MT-S7-24-MP24F-MP24F-A-5M	5
MT-S7-24-MP24F-MP24F-A-10M	10
MT-S7-24-MP24F-MP24F-A-15M	15
MT-S7-24-MP24F-MP24F-A-20M	20
MT-S7-24-MP24F-MP24F-A-25M	25
MT-S7-24-MP24F-MP24F-A-30M	30
MT-S7-24-MP24F-MP24F-A-35M	35
MT-S7-24-MP24F-MP24F-A-40M	40
MT-S7-24-MP24F-MP24F-A-45M	45
MT-S7-24-MP24F-MP24F-A-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity B, LSZH
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-B-3M	3
MT-S7-24-MP24F-MP24F-B-5M	5
MT-S7-24-MP24F-MP24F-B-10M	10
MT-S7-24-MP24F-MP24F-B-15M	15
MT-S7-24-MP24F-MP24F-B-20M	20
MT-S7-24-MP24F-MP24F-B-25M	25
MT-S7-24-MP24F-MP24F-B-30M	30
MT-S7-24-MP24F-MP24F-B-35M	35
MT-S7-24-MP24F-MP24F-B-40M	40
MT-S7-24-MP24F-MP24F-B-45M	45
MT-S7-24-MP24F-MP24F-B-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity C, LSZH
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-C-3M	3
MT-S7-24-MP24F-MP24F-C-5M	5
MT-S7-24-MP24F-MP24F-C-10M	10
MT-S7-24-MP24F-MP24F-C-15M	15
MT-S7-24-MP24F-MP24F-C-20M	20
MT-S7-24-MP24F-MP24F-C-25M	25
MT-S7-24-MP24F-MP24F-C-30M	30
MT-S7-24-MP24F-MP24F-C-35M	35
MT-S7-24-MP24F-MP24F-C-40M	40
MT-S7-24-MP24F-MP24F-C-45M	45
MT-S7-24-MP24F-MP24F-C-50M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-A-3M-C000	3
MT-S7-24-MP24F-MP24F-A-5M-C000	5
MT-S7-24-MP24F-MP24F-A-10M-C000	10
MT-S7-24-MP24F-MP24F-A-15M-C000	15
MT-S7-24-MP24F-MP24F-A-20M-C000	20
MT-S7-24-MP24F-MP24F-A-25M-C000	25
MT-S7-24-MP24F-MP24F-A-30M-C000	30
MT-S7-24-MP24F-MP24F-A-35M-C000	35
MT-S7-24-MP24F-MP24F-A-40M-C000	40
MT-S7-24-MP24F-MP24F-A-45M-C000	45
MT-S7-24-MP24F-MP24F-A-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-B-3M-C000	3
MT-S7-24-MP24F-MP24F-B-5M-C000	5
MT-S7-24-MP24F-MP24F-B-10M-C000	10
MT-S7-24-MP24F-MP24F-B-15M-C000	15
MT-S7-24-MP24F-MP24F-B-20M-C000	20
MT-S7-24-MP24F-MP24F-B-25M-C000	25
MT-S7-24-MP24F-MP24F-B-30M-C000	30
MT-S7-24-MP24F-MP24F-B-35M-C000	35
MT-S7-24-MP24F-MP24F-B-40M-C000	40
MT-S7-24-MP24F-MP24F-B-45M-C000	45
MT-S7-24-MP24F-MP24F-B-50M-C000	50

Fibre Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-S7-24-MP24F-MP24F-C-3M-C000	3
MT-S7-24-MP24F-MP24F-C-5M-C000	5
MT-S7-24-MP24F-MP24F-C-10M-C000	10
MT-S7-24-MP24F-MP24F-C-15M-C000	15
MT-S7-24-MP24F-MP24F-C-20M-C000	20
MT-S7-24-MP24F-MP24F-C-25M-C000	25
MT-S7-24-MP24F-MP24F-C-30M-C000	30
MT-S7-24-MP24F-MP24F-C-35M-C000	35
MT-S7-24-MP24F-MP24F-C-40M-C000	40
MT-S7-24-MP24F-MP24F-C-45M-C000	45
MT-S7-24-MP24F-MP24F-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity A, LSZH
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-A-3M	3
MT-M3-8-MP8F-MP8F-A-5M	5
MT-M3-8-MP8F-MP8F-A-10M	10
MT-M3-8-MP8F-MP8F-A-15M	15
MT-M3-8-MP8F-MP8F-A-20M	20
MT-M3-8-MP8F-MP8F-A-25M	25
MT-M3-8-MP8F-MP8F-A-30M	30
MT-M3-8-MP8F-MP8F-A-35M	35
MT-M3-8-MP8F-MP8F-A-40M	40
MT-M3-8-MP8F-MP8F-A-45M	45
MT-M3-8-MP8F-MP8F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity B, LSZH
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-B-3M	3
MT-M3-8-MP8F-MP8F-B-5M	5
MT-M3-8-MP8F-MP8F-B-10M	10
MT-M3-8-MP8F-MP8F-B-15M	15
MT-M3-8-MP8F-MP8F-B-20M	20
MT-M3-8-MP8F-MP8F-B-25M	25
MT-M3-8-MP8F-MP8F-B-30M	30
MT-M3-8-MP8F-MP8F-B-35M	35
MT-M3-8-MP8F-MP8F-B-40M	40
MT-M3-8-MP8F-MP8F-B-45M	45
MT-M3-8-MP8F-MP8F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity C, LSZH
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-C-3M	3
MT-M3-8-MP8F-MP8F-C-5M	5
MT-M3-8-MP8F-MP8F-C-10M	10
MT-M3-8-MP8F-MP8F-C-15M	15
MT-M3-8-MP8F-MP8F-C-20M	20
MT-M3-8-MP8F-MP8F-C-25M	25
MT-M3-8-MP8F-MP8F-C-30M	30
MT-M3-8-MP8F-MP8F-C-35M	35
MT-M3-8-MP8F-MP8F-C-40M	40
MT-M3-8-MP8F-MP8F-C-45M	45
MT-M3-8-MP8F-MP8F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-A-3M-C000	3
MT-M3-8-MP8F-MP8F-A-5M-C000	5
MT-M3-8-MP8F-MP8F-A-10M-C000	10
MT-M3-8-MP8F-MP8F-A-15M-C000	15
MT-M3-8-MP8F-MP8F-A-20M-C000	20
MT-M3-8-MP8F-MP8F-A-25M-C000	25
MT-M3-8-MP8F-MP8F-A-30M-C000	30
MT-M3-8-MP8F-MP8F-A-35M-C000	35
MT-M3-8-MP8F-MP8F-A-40M-C000	40
MT-M3-8-MP8F-MP8F-A-45M-C000	45
MT-M3-8-MP8F-MP8F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-B-3M-C000	3
MT-M3-8-MP8F-MP8F-B-5M-C000	5
MT-M3-8-MP8F-MP8F-B-10M-C000	10
MT-M3-8-MP8F-MP8F-B-15M-C000	15
MT-M3-8-MP8F-MP8F-B-20M-C000	20
MT-M3-8-MP8F-MP8F-B-25M-C000	25
MT-M3-8-MP8F-MP8F-B-30M-C000	30
MT-M3-8-MP8F-MP8F-B-35M-C000	35
MT-M3-8-MP8F-MP8F-B-40M-C000	40
MT-M3-8-MP8F-MP8F-B-45M-C000	45
MT-M3-8-MP8F-MP8F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M3-8-MP8F-MP8F-C-3M-C000	3
MT-M3-8-MP8F-MP8F-C-5M-C000	5
MT-M3-8-MP8F-MP8F-C-10M-C000	10
MT-M3-8-MP8F-MP8F-C-15M-C000	15
MT-M3-8-MP8F-MP8F-C-20M-C000	20
MT-M3-8-MP8F-MP8F-C-25M-C000	25
MT-M3-8-MP8F-MP8F-C-30M-C000	30
MT-M3-8-MP8F-MP8F-C-35M-C000	35
MT-M3-8-MP8F-MP8F-C-40M-C000	40
MT-M3-8-MP8F-MP8F-C-45M-C000	45
MT-M3-8-MP8F-MP8F-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-A-3M	3
MT-M3-12-MPOF-MPOF-A-5M	5
MT-M3-12-MPOF-MPOF-A-10M	10
MT-M3-12-MPOF-MPOF-A-15M	15
MT-M3-12-MPOF-MPOF-A-20M	20
MT-M3-12-MPOF-MPOF-A-25M	25
MT-M3-12-MPOF-MPOF-A-30M	30
MT-M3-12-MPOF-MPOF-A-35M	35
MT-M3-12-MPOF-MPOF-A-40M	40
MT-M3-12-MPOF-MPOF-A-45M	45
MT-M3-12-MPOF-MPOF-A-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-B-3M	3
MT-M3-12-MPOF-MPOF-B-5M	5
MT-M3-12-MPOF-MPOF-B-10M	10
MT-M3-12-MPOF-MPOF-B-15M	15
MT-M3-12-MPOF-MPOF-B-20M	20
MT-M3-12-MPOF-MPOF-B-25M	25
MT-M3-12-MPOF-MPOF-B-30M	30
MT-M3-12-MPOF-MPOF-B-35M	35
MT-M3-12-MPOF-MPOF-B-40M	40
MT-M3-12-MPOF-MPOF-B-45M	45
MT-M3-12-MPOF-MPOF-B-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-C-3M	3
MT-M3-12-MPOF-MPOF-C-5M	5
MT-M3-12-MPOF-MPOF-C-10M	10
MT-M3-12-MPOF-MPOF-C-15M	15
MT-M3-12-MPOF-MPOF-C-20M	20
MT-M3-12-MPOF-MPOF-C-25M	25
MT-M3-12-MPOF-MPOF-C-30M	30
MT-M3-12-MPOF-MPOF-C-35M	35
MT-M3-12-MPOF-MPOF-C-40M	40
MT-M3-12-MPOF-MPOF-C-45M	45
MT-M3-12-MPOF-MPOF-C-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-A-3M-C000	3
MT-M3-12-MPOF-MPOF-A-5M-C000	5
MT-M3-12-MPOF-MPOF-A-10M-C000	10
MT-M3-12-MPOF-MPOF-A-15M-C000	15
MT-M3-12-MPOF-MPOF-A-20M-C000	20
MT-M3-12-MPOF-MPOF-A-25M-C000	25
MT-M3-12-MPOF-MPOF-A-30M-C000	30
MT-M3-12-MPOF-MPOF-A-35M-C000	35
MT-M3-12-MPOF-MPOF-A-40M-C000	40
MT-M3-12-MPOF-MPOF-A-45M-C000	45
MT-M3-12-MPOF-MPOF-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-B-3M-C000	3
MT-M3-12-MPOF-MPOF-B-5M-C000	5
MT-M3-12-MPOF-MPOF-B-10M-C000	10
MT-M3-12-MPOF-MPOF-B-15M-C000	15
MT-M3-12-MPOF-MPOF-B-20M-C000	20
MT-M3-12-MPOF-MPOF-B-25M-C000	25
MT-M3-12-MPOF-MPOF-B-30M-C000	30
MT-M3-12-MPOF-MPOF-B-35M-C000	35
MT-M3-12-MPOF-MPOF-B-40M-C000	40
MT-M3-12-MPOF-MPOF-B-45M-C000	45
MT-M3-12-MPOF-MPOF-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M3-12-MPOF-MPOF-C-3M-C000	3
MT-M3-12-MPOF-MPOF-C-5M-C000	5
MT-M3-12-MPOF-MPOF-C-10M-C000	10
MT-M3-12-MPOF-MPOF-C-15M-C000	15
MT-M3-12-MPOF-MPOF-C-20M-C000	20
MT-M3-12-MPOF-MPOF-C-25M-C000	25
MT-M3-12-MPOF-MPOF-C-30M-C000	30
MT-M3-12-MPOF-MPOF-C-35M-C000	35
MT-M3-12-MPOF-MPOF-C-40M-C000	40
MT-M3-12-MPOF-MPOF-C-45M-C000	45
MT-M3-12-MPOF-MPOF-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity A, LSZH
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-A-3M	3
MT-M3-24-MP24F-MP24F-A-5M	5
MT-M3-24-MP24F-MP24F-A-10M	10
MT-M3-24-MP24F-MP24F-A-15M	15
MT-M3-24-MP24F-MP24F-A-20M	20
MT-M3-24-MP24F-MP24F-A-25M	25
MT-M3-24-MP24F-MP24F-A-30M	30
MT-M3-24-MP24F-MP24F-A-35M	35
MT-M3-24-MP24F-MP24F-A-40M	40
MT-M3-24-MP24F-MP24F-A-45M	45
MT-M3-24-MP24F-MP24F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity B, LSZH
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-B-3M	3
MT-M3-24-MP24F-MP24F-B-5M	5
MT-M3-24-MP24F-MP24F-B-10M	10
MT-M3-24-MP24F-MP24F-B-15M	15
MT-M3-24-MP24F-MP24F-B-20M	20
MT-M3-24-MP24F-MP24F-B-25M	25
MT-M3-24-MP24F-MP24F-B-30M	30
MT-M3-24-MP24F-MP24F-B-35M	35
MT-M3-24-MP24F-MP24F-B-40M	40
MT-M3-24-MP24F-MP24F-B-45M	45
MT-M3-24-MP24F-MP24F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity C, LSZH
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-C-3M	3
MT-M3-24-MP24F-MP24F-C-5M	5
MT-M3-24-MP24F-MP24F-C-10M	10
MT-M3-24-MP24F-MP24F-C-15M	15
MT-M3-24-MP24F-MP24F-C-20M	20
MT-M3-24-MP24F-MP24F-C-25M	25
MT-M3-24-MP24F-MP24F-C-30M	30
MT-M3-24-MP24F-MP24F-C-35M	35
MT-M3-24-MP24F-MP24F-C-40M	40
MT-M3-24-MP24F-MP24F-C-45M	45
MT-M3-24-MP24F-MP24F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-A-3M-C000	3
MT-M3-24-MP24F-MP24F-A-5M-C000	5
MT-M3-24-MP24F-MP24F-A-10M-C000	10
MT-M3-24-MP24F-MP24F-A-15M-C000	15
MT-M3-24-MP24F-MP24F-A-20M-C000	20
MT-M3-24-MP24F-MP24F-A-25M-C000	25
MT-M3-24-MP24F-MP24F-A-30M-C000	30
MT-M3-24-MP24F-MP24F-A-35M-C000	35
MT-M3-24-MP24F-MP24F-A-40M-C000	40
MT-M3-24-MP24F-MP24F-A-45M-C000	45
MT-M3-24-MP24F-MP24F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-B-3M-C000	3
MT-M3-24-MP24F-MP24F-B-5M-C000	5
MT-M3-24-MP24F-MP24F-B-10M-C000	10
MT-M3-24-MP24F-MP24F-B-15M-C000	15
MT-M3-24-MP24F-MP24F-B-20M-C000	20
MT-M3-24-MP24F-MP24F-B-25M-C000	25
MT-M3-24-MP24F-MP24F-B-30M-C000	30
MT-M3-24-MP24F-MP24F-B-35M-C000	35
MT-M3-24-MP24F-MP24F-B-40M-C000	40
MT-M3-24-MP24F-MP24F-B-45M-C000	45
MT-M3-24-MP24F-MP24F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M3-24-MP24F-MP24F-C-3M-C000	3
MT-M3-24-MP24F-MP24F-C-5M-C000	5
MT-M3-24-MP24F-MP24F-C-10M-C000	10
MT-M3-24-MP24F-MP24F-C-15M-C000	15
MT-M3-24-MP24F-MP24F-C-20M-C000	20
MT-M3-24-MP24F-MP24F-C-25M-C000	25
MT-M3-24-MP24F-MP24F-C-30M-C000	30
MT-M3-24-MP24F-MP24F-C-35M-C000	35
MT-M3-24-MP24F-MP24F-C-40M-C000	40
MT-M3-24-MP24F-MP24F-C-45M-C000	45
MT-M3-24-MP24F-MP24F-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity A, LSZH
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-A-3M	3
MT-M4-8-MP8F-MP8F-A-5M	5
MT-M4-8-MP8F-MP8F-A-10M	10
MT-M4-8-MP8F-MP8F-A-15M	15
MT-M4-8-MP8F-MP8F-A-20M	20
MT-M4-8-MP8F-MP8F-A-25M	25
MT-M4-8-MP8F-MP8F-A-30M	30
MT-M4-8-MP8F-MP8F-A-35M	35
MT-M4-8-MP8F-MP8F-A-40M	40
MT-M4-8-MP8F-MP8F-A-45M	45
MT-M4-8-MP8F-MP8F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity B, LSZH
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-B-3M	3
MT-M4-8-MP8F-MP8F-B-5M	5
MT-M4-8-MP8F-MP8F-B-10M	10
MT-M4-8-MP8F-MP8F-B-15M	15
MT-M4-8-MP8F-MP8F-B-20M	20
MT-M4-8-MP8F-MP8F-B-25M	25
MT-M4-8-MP8F-MP8F-B-30M	30
MT-M4-8-MP8F-MP8F-B-35M	35
MT-M4-8-MP8F-MP8F-B-40M	40
MT-M4-8-MP8F-MP8F-B-45M	45
MT-M4-8-MP8F-MP8F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity C, LSZH
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-C-3M	3
MT-M4-8-MP8F-MP8F-C-5M	5
MT-M4-8-MP8F-MP8F-C-10M	10
MT-M4-8-MP8F-MP8F-C-15M	15
MT-M4-8-MP8F-MP8F-C-20M	20
MT-M4-8-MP8F-MP8F-C-25M	25
MT-M4-8-MP8F-MP8F-C-30M	30
MT-M4-8-MP8F-MP8F-C-35M	35
MT-M4-8-MP8F-MP8F-C-40M	40
MT-M4-8-MP8F-MP8F-C-45M	45
MT-M4-8-MP8F-MP8F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-A-3M-C000	3
MT-M4-8-MP8F-MP8F-A-5M-C000	5
MT-M4-8-MP8F-MP8F-A-10M-C000	10
MT-M4-8-MP8F-MP8F-A-15M-C000	15
MT-M4-8-MP8F-MP8F-A-20M-C000	20
MT-M4-8-MP8F-MP8F-A-25M-C000	25
MT-M4-8-MP8F-MP8F-A-30M-C000	30
MT-M4-8-MP8F-MP8F-A-35M-C000	35
MT-M4-8-MP8F-MP8F-A-40M-C000	40
MT-M4-8-MP8F-MP8F-A-45M-C000	45
MT-M4-8-MP8F-MP8F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-B-3M-C000	3
MT-M4-8-MP8F-MP8F-B-5M-C000	5
MT-M4-8-MP8F-MP8F-B-10M-C000	10
MT-M4-8-MP8F-MP8F-B-15M-C000	15
MT-M4-8-MP8F-MP8F-B-20M-C000	20
MT-M4-8-MP8F-MP8F-B-25M-C000	25
MT-M4-8-MP8F-MP8F-B-30M-C000	30
MT-M4-8-MP8F-MP8F-B-35M-C000	35
MT-M4-8-MP8F-MP8F-B-40M-C000	40
MT-M4-8-MP8F-MP8F-B-45M-C000	45
MT-M4-8-MP8F-MP8F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M4-8-MP8F-MP8F-C-3M-C000	3
MT-M4-8-MP8F-MP8F-C-5M-C000	5
MT-M4-8-MP8F-MP8F-C-10M-C000	10
MT-M4-8-MP8F-MP8F-C-15M-C000	15
MT-M4-8-MP8F-MP8F-C-20M-C000	20
MT-M4-8-MP8F-MP8F-C-25M-C000	25
MT-M4-8-MP8F-MP8F-C-30M-C000	30
MT-M4-8-MP8F-MP8F-C-35M-C000	35
MT-M4-8-MP8F-MP8F-C-40M-C000	40
MT-M4-8-MP8F-MP8F-C-45M-C000	45
MT-M4-8-MP8F-MP8F-C-50M-C000	50

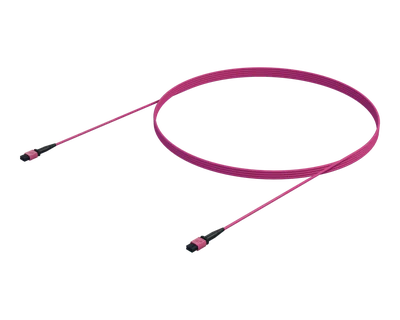

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-A-3M	3
MT-M4-12-MPOF-MPOF-A-5M	5
MT-M4-12-MPOF-MPOF-A-10M	10
MT-M4-12-MPOF-MPOF-A-15M	15
MT-M4-12-MPOF-MPOF-A-20M	20
MT-M4-12-MPOF-MPOF-A-25M	25
MT-M4-12-MPOF-MPOF-A-30M	30
MT-M4-12-MPOF-MPOF-A-35M	35
MT-M4-12-MPOF-MPOF-A-40M	40
MT-M4-12-MPOF-MPOF-A-45M	45
MT-M4-12-MPOF-MPOF-A-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-B-3M	3
MT-M4-12-MPOF-MPOF-B-5M	5
MT-M4-12-MPOF-MPOF-B-10M	10
MT-M4-12-MPOF-MPOF-B-15M	15
MT-M4-12-MPOF-MPOF-B-20M	20
MT-M4-12-MPOF-MPOF-B-25M	25
MT-M4-12-MPOF-MPOF-B-30M	30
MT-M4-12-MPOF-MPOF-B-35M	35
MT-M4-12-MPOF-MPOF-B-40M	40
MT-M4-12-MPOF-MPOF-B-45M	45
MT-M4-12-MPOF-MPOF-B-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-C-3M	3
MT-M4-12-MPOF-MPOF-C-5M	5
MT-M4-12-MPOF-MPOF-C-10M	10
MT-M4-12-MPOF-MPOF-C-15M	15
MT-M4-12-MPOF-MPOF-C-20M	20
MT-M4-12-MPOF-MPOF-C-25M	25
MT-M4-12-MPOF-MPOF-C-30M	30
MT-M4-12-MPOF-MPOF-C-35M	35
MT-M4-12-MPOF-MPOF-C-40M	40
MT-M4-12-MPOF-MPOF-C-45M	45
MT-M4-12-MPOF-MPOF-C-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-A-3M-C000	3
MT-M4-12-MPOF-MPOF-A-5M-C000	5
MT-M4-12-MPOF-MPOF-A-10M-C000	10
MT-M4-12-MPOF-MPOF-A-15M-C000	15
MT-M4-12-MPOF-MPOF-A-20M-C000	20
MT-M4-12-MPOF-MPOF-A-25M-C000	25
MT-M4-12-MPOF-MPOF-A-30M-C000	30
MT-M4-12-MPOF-MPOF-A-35M-C000	35
MT-M4-12-MPOF-MPOF-A-40M-C000	40
MT-M4-12-MPOF-MPOF-A-45M-C000	45
MT-M4-12-MPOF-MPOF-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-B-3M-C000	3
MT-M4-12-MPOF-MPOF-B-5M-C000	5
MT-M4-12-MPOF-MPOF-B-10M-C000	10
MT-M4-12-MPOF-MPOF-B-15M-C000	15
MT-M4-12-MPOF-MPOF-B-20M-C000	20
MT-M4-12-MPOF-MPOF-B-25M-C000	25
MT-M4-12-MPOF-MPOF-B-30M-C000	30
MT-M4-12-MPOF-MPOF-B-35M-C000	35
MT-M4-12-MPOF-MPOF-B-40M-C000	40
MT-M4-12-MPOF-MPOF-B-45M-C000	45
MT-M4-12-MPOF-MPOF-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M4-12-MPOF-MPOF-C-3M-C000	3
MT-M4-12-MPOF-MPOF-C-5M-C000	5
MT-M4-12-MPOF-MPOF-C-10M-C000	10
MT-M4-12-MPOF-MPOF-C-15M-C000	15
MT-M4-12-MPOF-MPOF-C-20M-C000	20
MT-M4-12-MPOF-MPOF-C-25M-C000	25
MT-M4-12-MPOF-MPOF-C-30M-C000	30
MT-M4-12-MPOF-MPOF-C-35M-C000	35
MT-M4-12-MPOF-MPOF-C-40M-C000	40
MT-M4-12-MPOF-MPOF-C-45M-C000	45
MT-M4-12-MPOF-MPOF-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity A, LSZH
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-A-3M	3
MT-M4-24-MP24F-MP24F-A-5M	5
MT-M4-24-MP24F-MP24F-A-10M	10
MT-M4-24-MP24F-MP24F-A-15M	15
MT-M4-24-MP24F-MP24F-A-20M	20
MT-M4-24-MP24F-MP24F-A-25M	25
MT-M4-24-MP24F-MP24F-A-30M	30
MT-M4-24-MP24F-MP24F-A-35M	35
MT-M4-24-MP24F-MP24F-A-40M	40
MT-M4-24-MP24F-MP24F-A-45M	45
MT-M4-24-MP24F-MP24F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity B, LSZH
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-B-3M	3
MT-M4-24-MP24F-MP24F-B-5M	5
MT-M4-24-MP24F-MP24F-B-10M	10
MT-M4-24-MP24F-MP24F-B-15M	15
MT-M4-24-MP24F-MP24F-B-20M	20
MT-M4-24-MP24F-MP24F-B-25M	25
MT-M4-24-MP24F-MP24F-B-30M	30
MT-M4-24-MP24F-MP24F-B-35M	35
MT-M4-24-MP24F-MP24F-B-40M	40
MT-M4-24-MP24F-MP24F-B-45M	45
MT-M4-24-MP24F-MP24F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity C, LSZH
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-C-3M	3
MT-M4-24-MP24F-MP24F-C-5M	5
MT-M4-24-MP24F-MP24F-C-10M	10
MT-M4-24-MP24F-MP24F-C-15M	15
MT-M4-24-MP24F-MP24F-C-20M	20
MT-M4-24-MP24F-MP24F-C-25M	25
MT-M4-24-MP24F-MP24F-C-30M	30
MT-M4-24-MP24F-MP24F-C-35M	35
MT-M4-24-MP24F-MP24F-C-40M	40
MT-M4-24-MP24F-MP24F-C-45M	45
MT-M4-24-MP24F-MP24F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-A-3M-C000	3
MT-M4-24-MP24F-MP24F-A-5M-C000	5
MT-M4-24-MP24F-MP24F-A-10M-C000	10
MT-M4-24-MP24F-MP24F-A-15M-C000	15
MT-M4-24-MP24F-MP24F-A-20M-C000	20
MT-M4-24-MP24F-MP24F-A-25M-C000	25
MT-M4-24-MP24F-MP24F-A-30M-C000	30
MT-M4-24-MP24F-MP24F-A-35M-C000	35
MT-M4-24-MP24F-MP24F-A-40M-C000	40
MT-M4-24-MP24F-MP24F-A-45M-C000	45
MT-M4-24-MP24F-MP24F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-B-3M-C000	3
MT-M4-24-MP24F-MP24F-B-5M-C000	5
MT-M4-24-MP24F-MP24F-B-10M-C000	10
MT-M4-24-MP24F-MP24F-B-15M-C000	15
MT-M4-24-MP24F-MP24F-B-20M-C000	20
MT-M4-24-MP24F-MP24F-B-25M-C000	25
MT-M4-24-MP24F-MP24F-B-30M-C000	30
MT-M4-24-MP24F-MP24F-B-35M-C000	35
MT-M4-24-MP24F-MP24F-B-40M-C000	40
MT-M4-24-MP24F-MP24F-B-45M-C000	45
MT-M4-24-MP24F-MP24F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M4-24-MP24F-MP24F-C-3M-C000	3
MT-M4-24-MP24F-MP24F-C-5M-C000	5
MT-M4-24-MP24F-MP24F-C-10M-C000	10
MT-M4-24-MP24F-MP24F-C-15M-C000	15
MT-M4-24-MP24F-MP24F-C-20M-C000	20
MT-M4-24-MP24F-MP24F-C-25M-C000	25
MT-M4-24-MP24F-MP24F-C-30M-C000	30
MT-M4-24-MP24F-MP24F-C-35M-C000	35
MT-M4-24-MP24F-MP24F-C-40M-C000	40
MT-M4-24-MP24F-MP24F-C-45M-C000	45
MT-M4-24-MP24F-MP24F-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity A, LSZH
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-A-3M	3
MT-M5-8-MP8F-MP8F-A-5M	5
MT-M5-8-MP8F-MP8F-A-10M	10
MT-M5-8-MP8F-MP8F-A-15M	15
MT-M5-8-MP8F-MP8F-A-20M	20
MT-M5-8-MP8F-MP8F-A-25M	25
MT-M5-8-MP8F-MP8F-A-30M	30
MT-M5-8-MP8F-MP8F-A-35M	35
MT-M5-8-MP8F-MP8F-A-40M	40
MT-M5-8-MP8F-MP8F-A-45M	45
MT-M5-8-MP8F-MP8F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity B, LSZH
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-B-3M	3
MT-M5-8-MP8F-MP8F-B-5M	5
MT-M5-8-MP8F-MP8F-B-10M	10
MT-M5-8-MP8F-MP8F-B-15M	15
MT-M5-8-MP8F-MP8F-B-20M	20
MT-M5-8-MP8F-MP8F-B-25M	25
MT-M5-8-MP8F-MP8F-B-30M	30
MT-M5-8-MP8F-MP8F-B-35M	35
MT-M5-8-MP8F-MP8F-B-40M	40
MT-M5-8-MP8F-MP8F-B-45M	45
MT-M5-8-MP8F-MP8F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity C, LSZH
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-C-3M	3
MT-M5-8-MP8F-MP8F-C-5M	5
MT-M5-8-MP8F-MP8F-C-10M	10
MT-M5-8-MP8F-MP8F-C-15M	15
MT-M5-8-MP8F-MP8F-C-20M	20
MT-M5-8-MP8F-MP8F-C-25M	25
MT-M5-8-MP8F-MP8F-C-30M	30
MT-M5-8-MP8F-MP8F-C-35M	35
MT-M5-8-MP8F-MP8F-C-40M	40
MT-M5-8-MP8F-MP8F-C-45M	45
MT-M5-8-MP8F-MP8F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-A-3M-C000	3
MT-M5-8-MP8F-MP8F-A-5M-C000	5
MT-M5-8-MP8F-MP8F-A-10M-C000	10
MT-M5-8-MP8F-MP8F-A-15M-C000	15
MT-M5-8-MP8F-MP8F-A-20M-C000	20
MT-M5-8-MP8F-MP8F-A-25M-C000	25
MT-M5-8-MP8F-MP8F-A-30M-C000	30
MT-M5-8-MP8F-MP8F-A-35M-C000	35
MT-M5-8-MP8F-MP8F-A-40M-C000	40
MT-M5-8-MP8F-MP8F-A-45M-C000	45
MT-M5-8-MP8F-MP8F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-B-3M-C000	3
MT-M5-8-MP8F-MP8F-B-5M-C000	5
MT-M5-8-MP8F-MP8F-B-10M-C000	10
MT-M5-8-MP8F-MP8F-B-15M-C000	15
MT-M5-8-MP8F-MP8F-B-20M-C000	20
MT-M5-8-MP8F-MP8F-B-25M-C000	25
MT-M5-8-MP8F-MP8F-B-30M-C000	30
MT-M5-8-MP8F-MP8F-B-35M-C000	35
MT-M5-8-MP8F-MP8F-B-40M-C000	40
MT-M5-8-MP8F-MP8F-B-45M-C000	45
MT-M5-8-MP8F-MP8F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M5-8-MP8F-MP8F-C-3M-C000	3
MT-M5-8-MP8F-MP8F-C-5M-C000	5
MT-M5-8-MP8F-MP8F-C-10M-C000	10
MT-M5-8-MP8F-MP8F-C-15M-C000	15
MT-M5-8-MP8F-MP8F-C-20M-C000	20
MT-M5-8-MP8F-MP8F-C-25M-C000	25
MT-M5-8-MP8F-MP8F-C-30M-C000	30
MT-M5-8-MP8F-MP8F-C-35M-C000	35
MT-M5-8-MP8F-MP8F-C-40M-C000	40
MT-M5-8-MP8F-MP8F-C-45M-C000	45
MT-M5-8-MP8F-MP8F-C-50M-C000	50

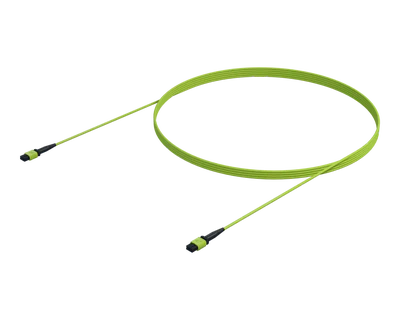

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-A-3M	3
MT-M5-12-MPOF-MPOF-A-5M	5
MT-M5-12-MPOF-MPOF-A-10M	10
MT-M5-12-MPOF-MPOF-A-15M	15
MT-M5-12-MPOF-MPOF-A-20M	20
MT-M5-12-MPOF-MPOF-A-25M	25
MT-M5-12-MPOF-MPOF-A-30M	30
MT-M5-12-MPOF-MPOF-A-35M	35
MT-M5-12-MPOF-MPOF-A-40M	40
MT-M5-12-MPOF-MPOF-A-45M	45
MT-M5-12-MPOF-MPOF-A-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-B-3M	3
MT-M5-12-MPOF-MPOF-B-5M	5
MT-M5-12-MPOF-MPOF-B-10M	10
MT-M5-12-MPOF-MPOF-B-15M	15
MT-M5-12-MPOF-MPOF-B-20M	20
MT-M5-12-MPOF-MPOF-B-25M	25
MT-M5-12-MPOF-MPOF-B-30M	30
MT-M5-12-MPOF-MPOF-B-35M	35
MT-M5-12-MPOF-MPOF-B-40M	40
MT-M5-12-MPOF-MPOF-B-45M	45
MT-M5-12-MPOF-MPOF-B-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-C-3M	3
MT-M5-12-MPOF-MPOF-C-5M	5
MT-M5-12-MPOF-MPOF-C-10M	10
MT-M5-12-MPOF-MPOF-C-15M	15
MT-M5-12-MPOF-MPOF-C-20M	20
MT-M5-12-MPOF-MPOF-C-25M	25
MT-M5-12-MPOF-MPOF-C-30M	30
MT-M5-12-MPOF-MPOF-C-35M	35
MT-M5-12-MPOF-MPOF-C-40M	40
MT-M5-12-MPOF-MPOF-C-45M	45
MT-M5-12-MPOF-MPOF-C-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-A-3M-C000	3
MT-M5-12-MPOF-MPOF-A-5M-C000	5
MT-M5-12-MPOF-MPOF-A-10M-C000	10
MT-M5-12-MPOF-MPOF-A-15M-C000	15
MT-M5-12-MPOF-MPOF-A-20M-C000	20
MT-M5-12-MPOF-MPOF-A-25M-C000	25
MT-M5-12-MPOF-MPOF-A-30M-C000	30
MT-M5-12-MPOF-MPOF-A-35M-C000	35
MT-M5-12-MPOF-MPOF-A-40M-C000	40
MT-M5-12-MPOF-MPOF-A-45M-C000	45
MT-M5-12-MPOF-MPOF-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-B-3M-C000	3
MT-M5-12-MPOF-MPOF-B-5M-C000	5
MT-M5-12-MPOF-MPOF-B-10M-C000	10
MT-M5-12-MPOF-MPOF-B-15M-C000	15
MT-M5-12-MPOF-MPOF-B-20M-C000	20
MT-M5-12-MPOF-MPOF-B-25M-C000	25
MT-M5-12-MPOF-MPOF-B-30M-C000	30
MT-M5-12-MPOF-MPOF-B-35M-C000	35
MT-M5-12-MPOF-MPOF-B-40M-C000	40
MT-M5-12-MPOF-MPOF-B-45M-C000	45
MT-M5-12-MPOF-MPOF-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M5-12-MPOF-MPOF-C-3M-C000	3
MT-M5-12-MPOF-MPOF-C-5M-C000	5
MT-M5-12-MPOF-MPOF-C-10M-C000	10
MT-M5-12-MPOF-MPOF-C-15M-C000	15
MT-M5-12-MPOF-MPOF-C-20M-C000	20
MT-M5-12-MPOF-MPOF-C-25M-C000	25
MT-M5-12-MPOF-MPOF-C-30M-C000	30
MT-M5-12-MPOF-MPOF-C-35M-C000	35
MT-M5-12-MPOF-MPOF-C-40M-C000	40
MT-M5-12-MPOF-MPOF-C-45M-C000	45
MT-M5-12-MPOF-MPOF-C-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity A, LSZH
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-A-3M	3
MT-M5-24-MP24F-MP24F-A-5M	5
MT-M5-24-MP24F-MP24F-A-10M	10
MT-M5-24-MP24F-MP24F-A-15M	15
MT-M5-24-MP24F-MP24F-A-20M	20
MT-M5-24-MP24F-MP24F-A-25M	25
MT-M5-24-MP24F-MP24F-A-30M	30
MT-M5-24-MP24F-MP24F-A-35M	35
MT-M5-24-MP24F-MP24F-A-40M	40
MT-M5-24-MP24F-MP24F-A-45M	45
MT-M5-24-MP24F-MP24F-A-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity B, LSZH
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-B-3M	3
MT-M5-24-MP24F-MP24F-B-5M	5
MT-M5-24-MP24F-MP24F-B-10M	10
MT-M5-24-MP24F-MP24F-B-15M	15
MT-M5-24-MP24F-MP24F-B-20M	20
MT-M5-24-MP24F-MP24F-B-25M	25
MT-M5-24-MP24F-MP24F-B-30M	30
MT-M5-24-MP24F-MP24F-B-35M	35
MT-M5-24-MP24F-MP24F-B-40M	40
MT-M5-24-MP24F-MP24F-B-45M	45
MT-M5-24-MP24F-MP24F-B-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity C, LSZH
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-C-3M	3
MT-M5-24-MP24F-MP24F-C-5M	5
MT-M5-24-MP24F-MP24F-C-10M	10
MT-M5-24-MP24F-MP24F-C-15M	15
MT-M5-24-MP24F-MP24F-C-20M	20
MT-M5-24-MP24F-MP24F-C-25M	25
MT-M5-24-MP24F-MP24F-C-30M	30
MT-M5-24-MP24F-MP24F-C-35M	35
MT-M5-24-MP24F-MP24F-C-40M	40
MT-M5-24-MP24F-MP24F-C-45M	45
MT-M5-24-MP24F-MP24F-C-50M	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity A, LSZH CPR Cca
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-A-3M-C000	3
MT-M5-24-MP24F-MP24F-A-5M-C000	5
MT-M5-24-MP24F-MP24F-A-10M-C000	10
MT-M5-24-MP24F-MP24F-A-15M-C000	15
MT-M5-24-MP24F-MP24F-A-20M-C000	20
MT-M5-24-MP24F-MP24F-A-25M-C000	25
MT-M5-24-MP24F-MP24F-A-30M-C000	30
MT-M5-24-MP24F-MP24F-A-35M-C000	35
MT-M5-24-MP24F-MP24F-A-40M-C000	40
MT-M5-24-MP24F-MP24F-A-45M-C000	45
MT-M5-24-MP24F-MP24F-A-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity B, LSZH CPR Cca
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-B-3M-C000	3
MT-M5-24-MP24F-MP24F-B-5M-C000	5
MT-M5-24-MP24F-MP24F-B-10M-C000	10
MT-M5-24-MP24F-MP24F-B-15M-C000	15
MT-M5-24-MP24F-MP24F-B-20M-C000	20
MT-M5-24-MP24F-MP24F-B-25M-C000	25
MT-M5-24-MP24F-MP24F-B-30M-C000	30
MT-M5-24-MP24F-MP24F-B-35M-C000	35
MT-M5-24-MP24F-MP24F-B-40M-C000	40
MT-M5-24-MP24F-MP24F-B-45M-C000	45
MT-M5-24-MP24F-MP24F-B-50M-C000	50

Fibre Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity C, LSZH CPR Cca
Part Number	Length (m)
MT-M5-24-MP24F-MP24F-C-3M-C000	3
MT-M5-24-MP24F-MP24F-C-5M-C000	5
MT-M5-24-MP24F-MP24F-C-10M-C000	10
MT-M5-24-MP24F-MP24F-C-15M-C000	15
MT-M5-24-MP24F-MP24F-C-20M-C000	20
MT-M5-24-MP24F-MP24F-C-25M-C000	25
MT-M5-24-MP24F-MP24F-C-30M-C000	30
MT-M5-24-MP24F-MP24F-C-35M-C000	35
MT-M5-24-MP24F-MP24F-C-40M-C000	40
MT-M5-24-MP24F-MP24F-C-45M-C000	45
MT-M5-24-MP24F-MP24F-C-50M-C000	50
