- Optimized for long spans (up to 500m depending on loading)
- Fibre counts from 6 to 288
- Double Jacket construction for superior mechanical protection
- Heavy Aramid yarn layer between jackets for maximum tensile strength
- Dry core with StaticGEL™ loose tubes for clean, low-mess handling
- All-dielectric non-metallic construction (no grounding required)
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

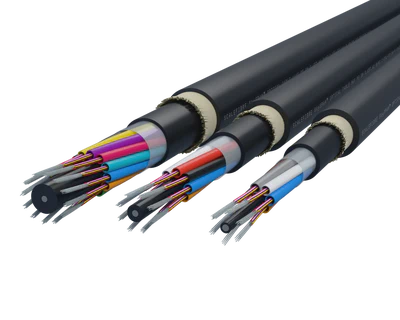

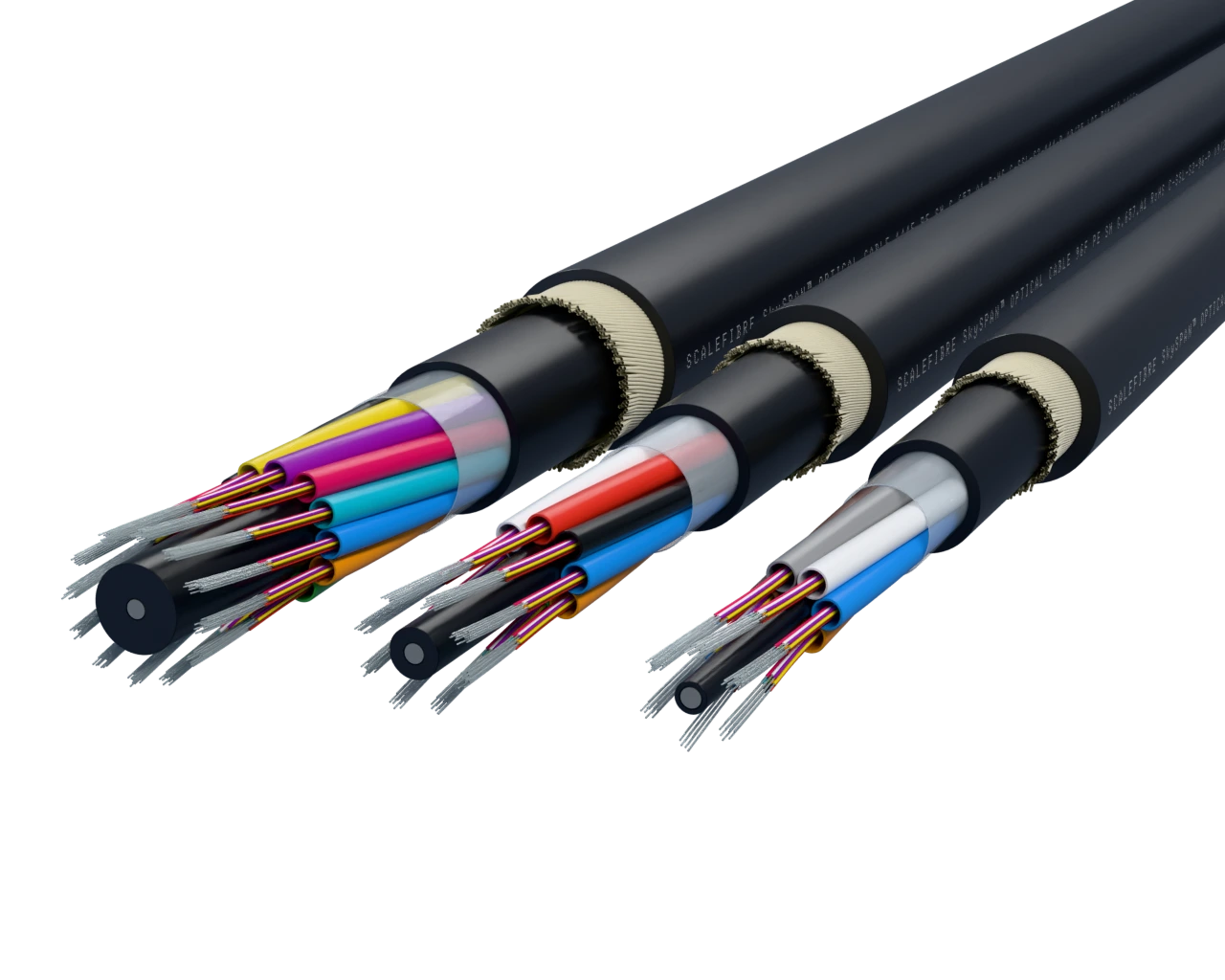

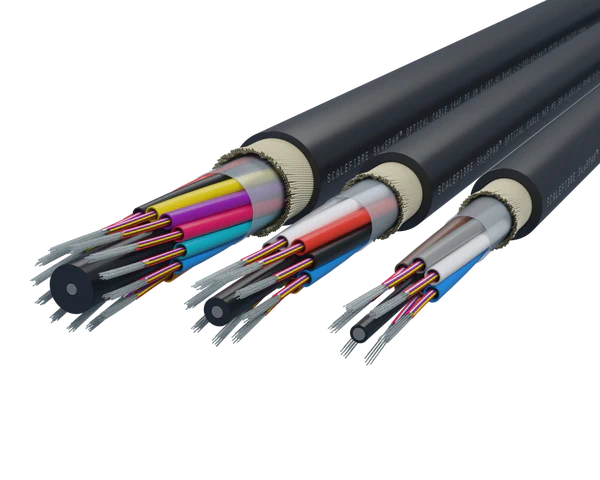

The SkySPAN™ Long Span ADSS (All-Dielectric Self-Supporting) optical cable family is the most robust aerial solution in the series, engineered for demanding long-haul and transmission line environments. Capable of spanning distances up to 500 meters (depending on loading conditions), this cable is designed for high-capacity networks with fiber counts up to 288.

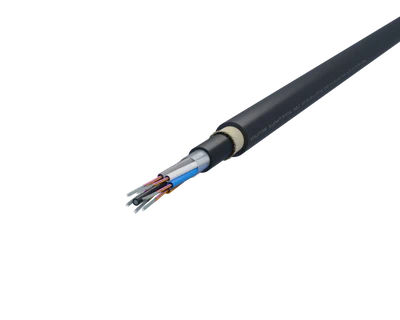

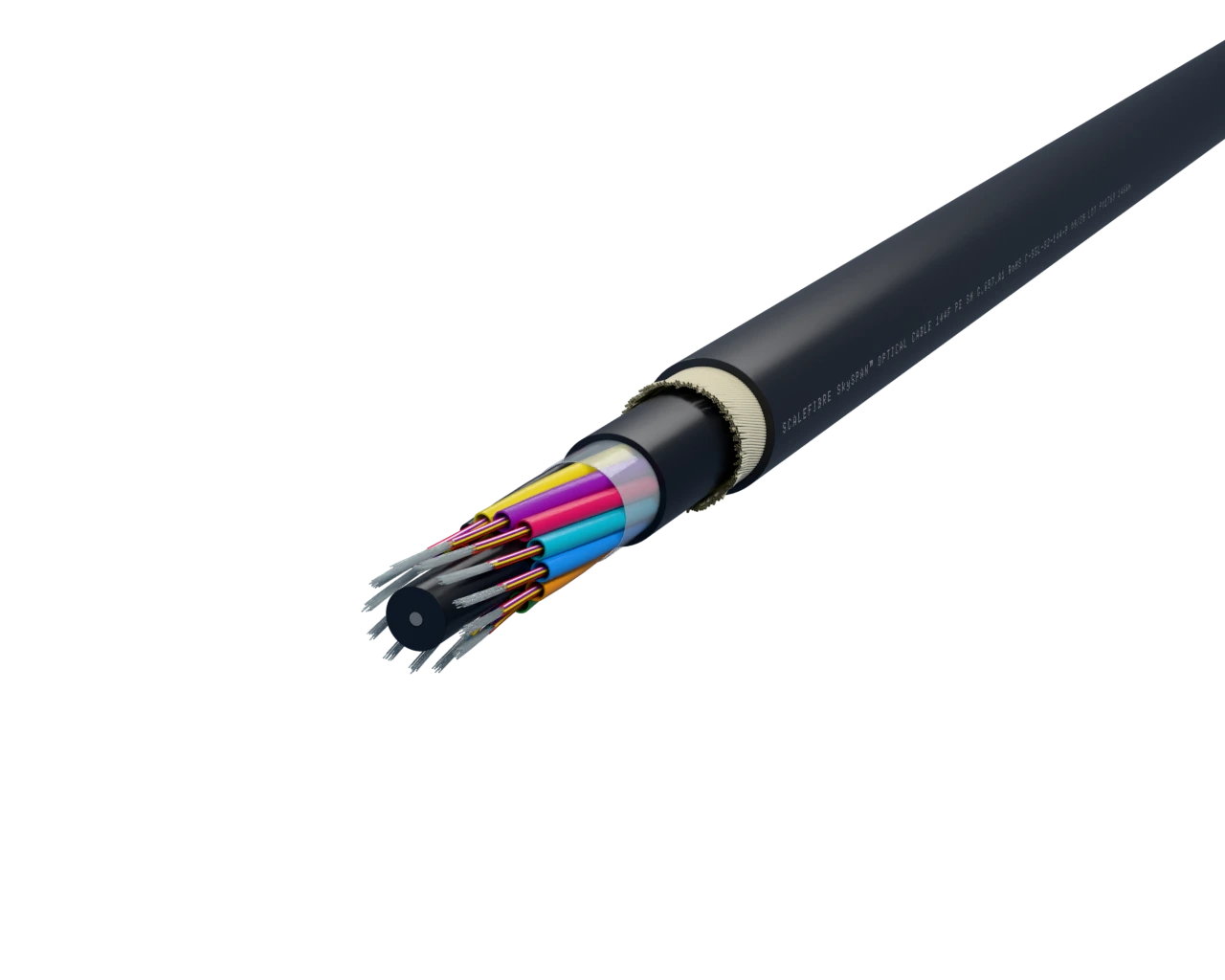

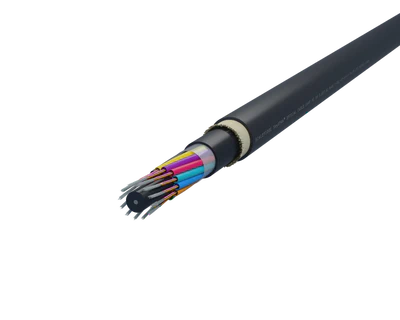

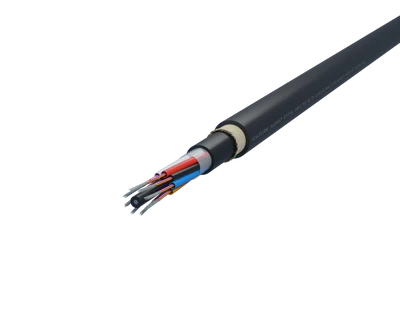

The SkySPAN™ Long Span construction features a double jacket design for maximum mechanical protection. The core utilizes StaticGEL™ technology within SZ-stranded loose tubes, surrounding a central FRP strength member. An inner polyethylene (PE) jacket protects the core, while a heavy layer of aramid yarns between the jackets provides the substantial tensile strength required for long spans. Finished with a durable black PE outer jacket, this cable delivers uncompromising performance in extreme environmental conditions.
| Construction Details | |
| Fibre Count | 6 to 288 fibres |
| Fibre Type | Single-mode G.652.D Single-mode G.657.A1 Single-mode G.655 Multimode Specialty fibres |
| Tube Configuration | SZ-stranded loose tubes (Max 12 fibres per tube) |
| Tube Filling | StaticGEL™ technology for clean, fast handling |
| Core Water Blocking | Dry core with water-blocking yarns and tape |
| Strength Member | Central FRP rod (dielectric) |
| Peripheral Strength | High-tensile Aramid Yarns (between jackets) |
| Ripcord | One |
| Jacket | Double Jacket (Inner and Outer Black Polyethylene) |
| Cable Dimensions | |
| Outside Diameter | 6-36F: 13.7 ± 0.5 mm 48-72F: 14.3 ± 0.5 mm 96F: 15.6 ± 0.5 mm 120F: 16.9 ± 0.5 mm 144F: 18.3 ± 0.5 mm 288F: 21.5 ± 0.5 mm |
| Weight | 6-36F: 142 kg/km 48-72F: 155 kg/km 96F: 186 kg/km 120F: 222 kg/km 144F: 255 kg/km 288F: 348 kg/km |
| Bend Radius | |
| Minimum Bend Radius (Installation) | 20 × Cable OD (274 mm to 430 mm depending on count) |
| Minimum Bend Radius (No-Load / Static) | 10 × Cable OD (137 mm to 215 mm depending on count) |
| Mechanical Characteristics | |
| Tensile Strength (Test) | 2,700 N (IEC 60794-1-2 Method E1) |
| Crush Resistance | 2,000 N/100 mm (IEC 60794-1-2 Method E3) |
| Impact Resistance | 10 J (IEC 60794-1 Method E4) |
| Environmental | |
| Operating Temperature | -40 °C to +70 °C |
| Installation Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Compliance | |
| Standards | IEC 60794-1; AS/CA S008; ITU-T optical fibre standards |
| RoHS Compliant | Yes |
| SkySPAN™ ADSS Single-mode (G.652.D) – Standard Fibre Counts | |
| Part Number | Description |
| C-SSL-S2-6-P | ADSS Cable, Long Span, Single Mode (G.652.D), 6F, Double PE Jacket |
| C-SSL-S2-12-P | ADSS Cable, Long Span, Single Mode (G.652.D), 12F, Double PE Jacket |
| C-SSL-S2-24-P | ADSS Cable, Long Span, Single Mode (G.652.D), 24F, Double PE Jacket |
| C-SSL-S2-48-P | ADSS Cable, Long Span, Single Mode (G.652.D), 48F, Double PE Jacket |
| C-SSL-S2-72-P | ADSS Cable, Long Span, Single Mode (G.652.D), 72F, Double PE Jacket |
| C-SSL-S2-96-P | ADSS Cable, Long Span, Single Mode (G.652.D), 96F, Double PE Jacket |
| C-SSL-S2-144-P | ADSS Cable, Long Span, Single Mode (G.652.D), 144F, Double PE Jacket |
| C-SSL-S2-288-P | ADSS Cable, Long Span, Single Mode (G.652.D), 288F, Double PE Jacket |
| SkySPAN™ ADSS Single-mode (G.657.A1) – Standard Fibre Counts | |
| Part Number | Description |
| C-SSL-S7-6-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 6F, Double PE Jacket |
| C-SSL-S7-12-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 12F, Double PE Jacket |
| C-SSL-S7-24-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 24F, Double PE Jacket |
| C-SSL-S7-48-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 48F, Double PE Jacket |
| C-SSL-S7-72-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 72F, Double PE Jacket |
| C-SSL-S7-96-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 96F, Double PE Jacket |
| C-SSL-S7-144-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 144F, Double PE Jacket |
| C-SSL-S7-288-P | ADSS Cable, Long Span, Single Mode (G.657.A1), 288F, Double PE Jacket |
