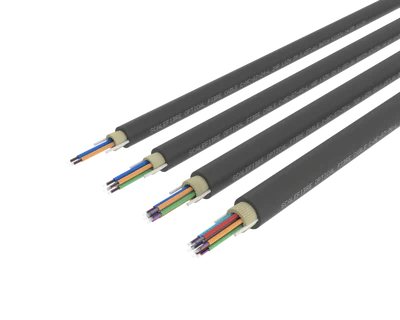

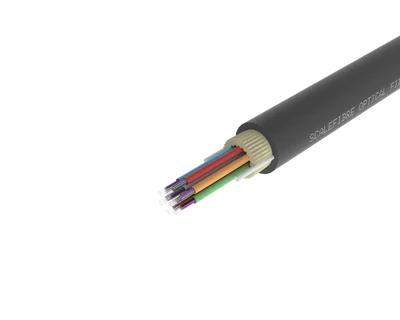

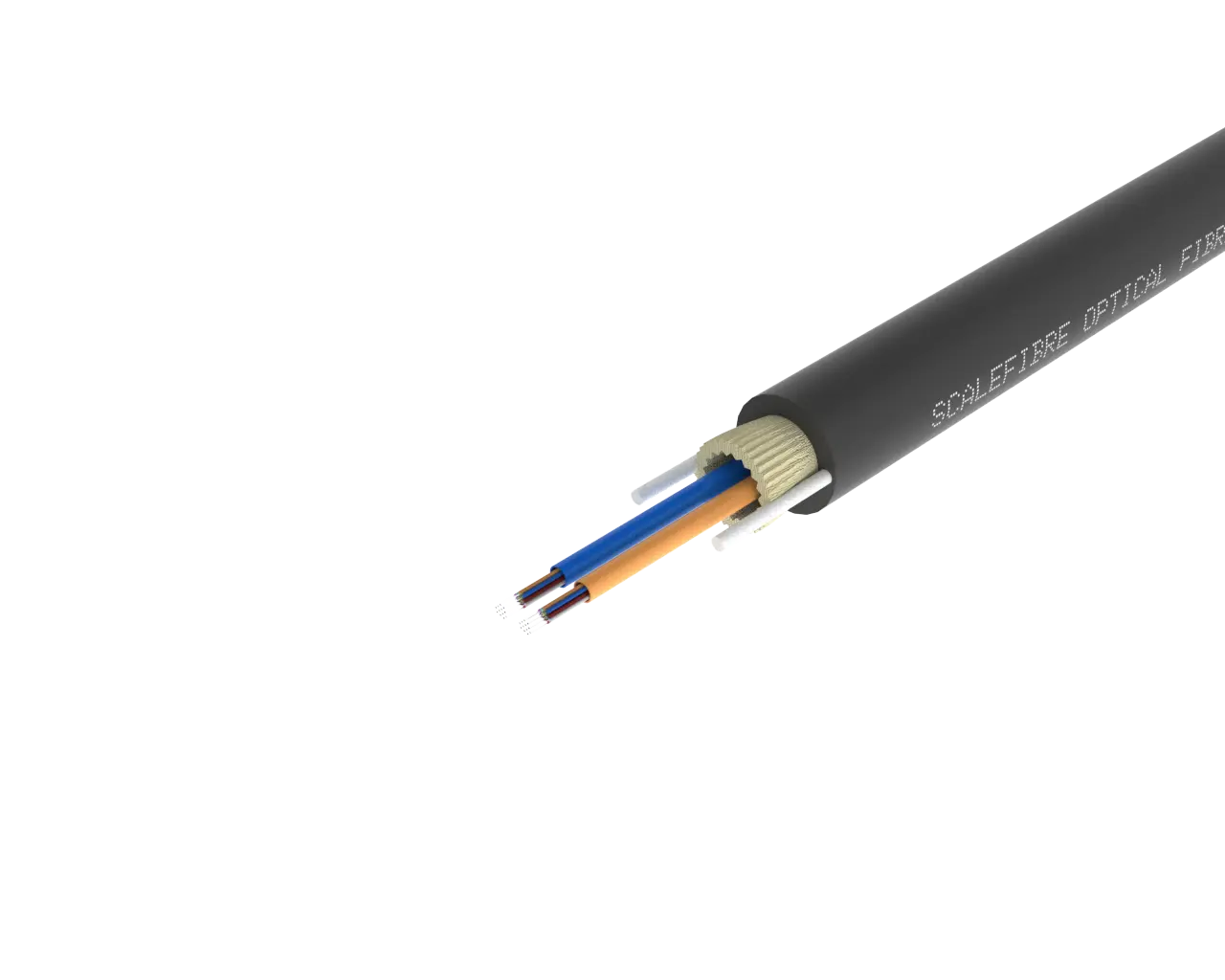

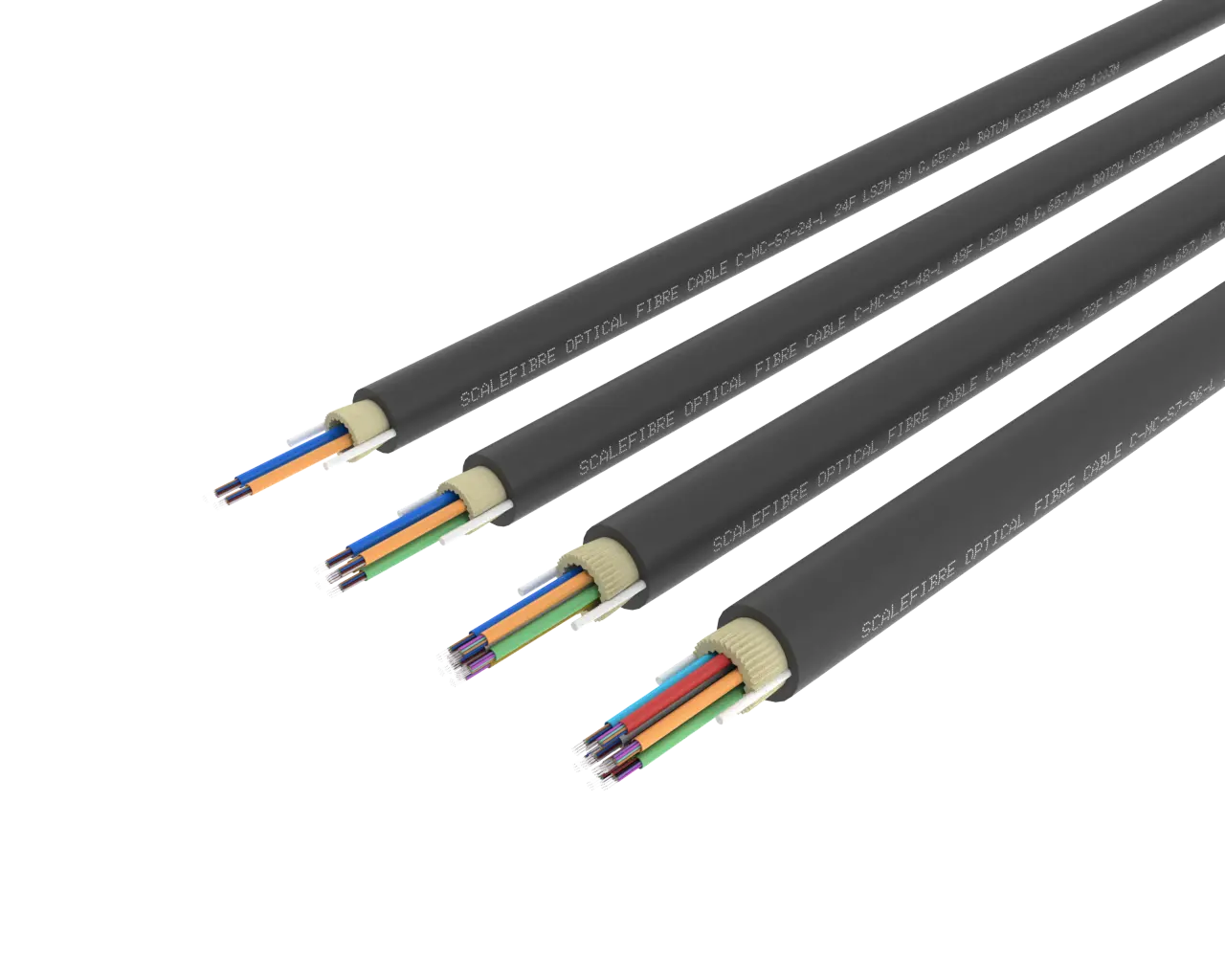

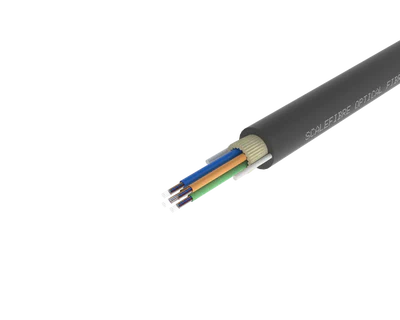

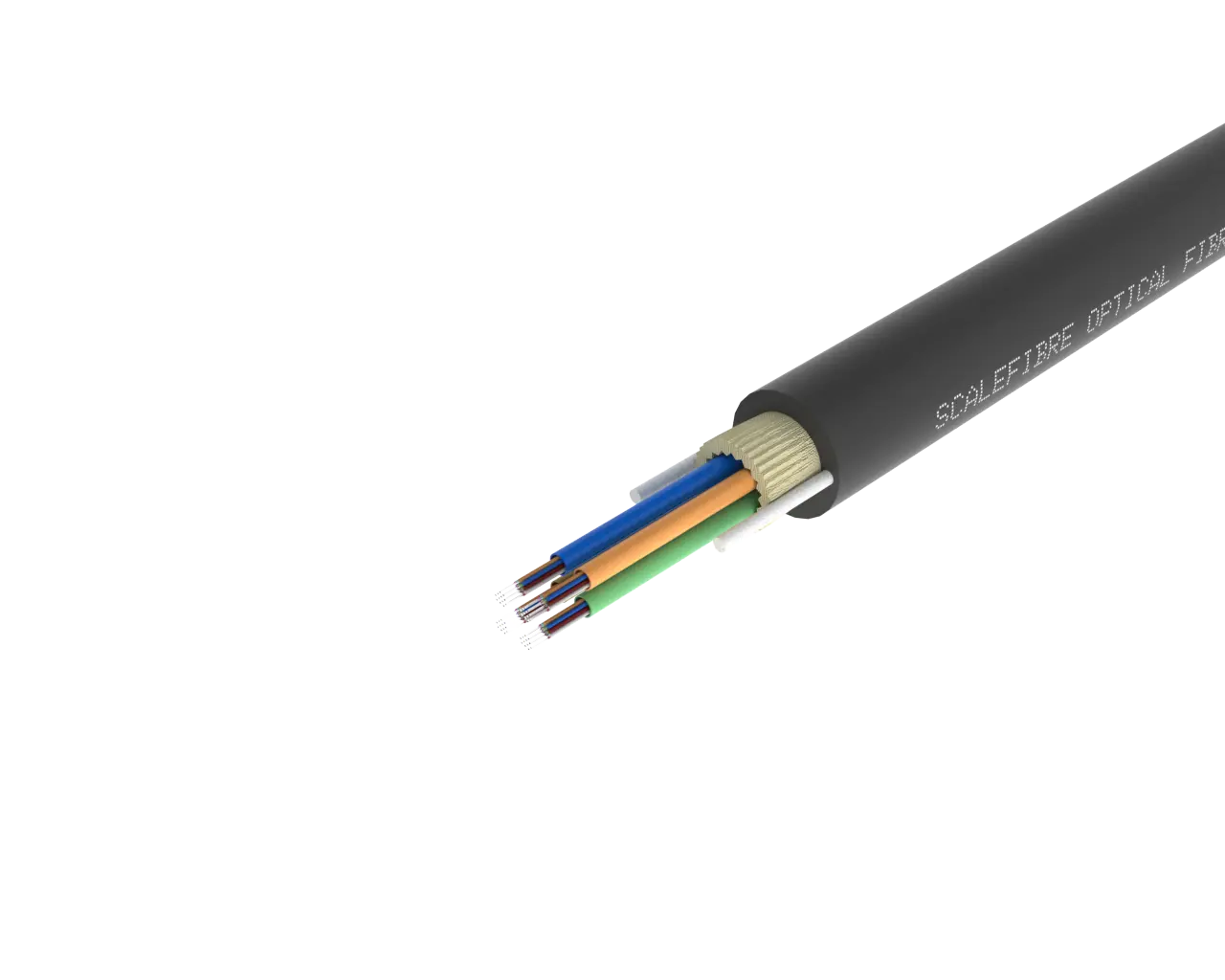

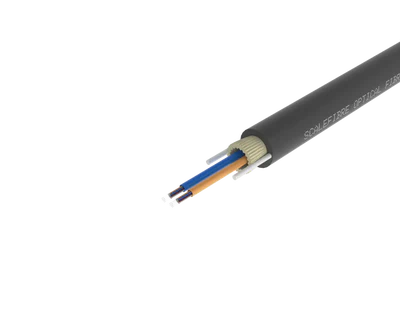

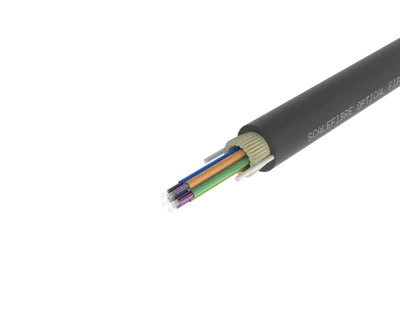

Durable loose tube fibre optic cable with a Low Smoke Zero Halogen (LSZH) jacket, designed for enhanced fire safety and minimal emissions in enclosed or regulated environments.
- Designed for ease of preparation
- Dry water-blocked design
- Suitable for duct and direct-buried deployments
- Low smoke zero halogen black outer jacket
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
This loose tube fibre optic cable is engineered for compactness and ease of installation in constrained duct environments. Its reduced diameter allows for more fibres per conduit, optimising duct utilisation. A black low smoke zero halogen (LSZH) outer jacket provides environmental durability, yet reduces harmful chemicals in the event of a fire. Aramid yarns and FRP rods add tensile strength, while dry water-blocking materials enable clean, tool-free handling during installation.
The cable supports duct and direct burial applications, and is suitable for broadband, enterprise, carrier, and utility infrastructure builds. Available in configurations from 6 to 96 fibres, with a variety of optical fibre types, this construction ensures stability in long-haul, metro and campus network deployments.
| Construction Details | |
| Fibre Count | 6 to 96 fibres |
| Fibre Type | Single-mode G.652.D Single-mode G.657.A1 Single-mode G.657.A2 Multi-mode OM3 Multi-mode OM4 Other specialty optical fibres |
| Tube Type | Polymer Loose Tubes with dry blocking technology |
| Water Blocking | Dry water-swellable yarns and tape |
| Strength Member | Aramid yarns and FRP rods |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) |
| Outer Diameter | |
| Outer Diameter, 6 Fibres | 6.0mm |
| Outer Diameter, 12 Fibres | 6.6mm |
| Outer Diameter, 24 Fibres | 7.2mm |
| Outer Diameter, 48 Fibres | 8.2mm |
| Outer Diameter, 72 Fibres | 9.0mm |
| Weight | |
| 6 Fibres | 47 kg/km |
| 12 Fibres | 54 kg/km |
| 24 Fibres | 62 kg/km |
| 48 Fibres | 76 kg/km |
| 72 Fibres | 88 kg/km |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 0.9–1.8kN (≥ 2.0 × cable weight) |
| Crush Resistance | 2.0kN/10cm |
| Bend Radius | |
| 6 Fibres | 120mm (Installation) / 60mm (Static) |
| 12 Fibres | 140mm (Installation) / 70mm (Static) |
| 24 Fibres | 150mm (Installation) / 75mm (Static) |
| 48 Fibres | 170mm (Installation) / 85mm (Static) |
| 72 Fibres | 180mm (Installation) / 90mm (Static) |
| Environmental Characteristics | |
| Installation Temperature | -5°C to +45°C |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Compliance | |
| Standards | IEC 60794, AS/CA S008, ITU-T Optical Fibre Standards |
| RoHS3 Compliant | Yes |
| Single Mode, G.657.A1 | |
| C-LTMC-S7-006-L | Loose Tube Micro Cable, 6 Fibre, Single-mode (G.657.A1) |
| C-LTMC-S7-012-L | Loose Tube Micro Cable, 12 Fibre, Single-mode (G.657.A1) |
| C-LTMC-S7-024-L | Loose Tube Micro Cable, 24 Fibre, Single-mode (G.657.A1) |
| C-LTMC-S7-048-L | Loose Tube Micro Cable, 48 Fibre, Single-mode (G.657.A1) |
| C-LTMC-S7-072-L | Loose Tube Micro Cable, 72 Fibre, Single-mode (G.657.A1) |
| C-LTMC-S7-096-L | Loose Tube Micro Cable, 96 Fibre, Single-mode (G.657.A1) |
| Single Mode, G.652.D | |
| C-LTMC-S2-006-L | Loose Tube Micro Cable, 6 Fibre, Single-mode (G.652.D) |
| C-LTMC-S2-012-L | Loose Tube Micro Cable, 12 Fibre, Single-mode (G.652.D) |
| C-LTMC-S2-024-L | Loose Tube Micro Cable, 24 Fibre, Single-mode (G.652.D) |
| C-LTMC-S2-048-L | Loose Tube Micro Cable, 48 Fibre, Single-mode (G.652.D1) |
| C-LTMC-S2-072-L | Loose Tube Micro Cable, 72 Fibre, Single-mode (G.652.D) |
| C-LTMC-S2-096-L | Loose Tube Micro Cable, 96 Fibre, Single-mode (G.652.D) |
| Multi Mode, OM3 | |
| C-LTMC-M3-006-L | Loose Tube Micro Cable, 6 Fibre, Single-mode (OM3) |
| C-LTMC-M3-012-L | Loose Tube Micro Cable, 12 Fibre, Single-mode (OM3) |
| C-LTMC-M3-024-L | Loose Tube Micro Cable, 24 Fibre, Single-mode (OM3) |
| C-LTMC-M3-048-L | Loose Tube Micro Cable, 48 Fibre, Single-mode (OM3) |
| C-LTMC-M3-072-L | Loose Tube Micro Cable, 72 Fibre, Single-mode (OM3) |
| C-LTMC-M3-096-L | Loose Tube Micro Cable, 96 Fibre, Single-mode (OM3) |
| Multi Mode, OM4 | |
| C-LTMC-M4-006-L | Loose Tube Micro Cable, 6 Fibre, Single-mode (OM4) |
| C-LTMC-M4-012-L | Loose Tube Micro Cable, 12 Fibre, Single-mode (OM4) |
| C-LTMC-M4-024-L | Loose Tube Micro Cable, 24 Fibre, Single-mode (OM4) |
| C-LTMC-M4-048-L | Loose Tube Micro Cable, 48 Fibre, Single-mode (OM4) |
| C-LTMC-M4-072-L | Loose Tube Micro Cable, 72 Fibre, Single-mode (OM4) |
| C-LTMC-M4-096-L | Loose Tube Micro Cable, 96 Fibre, Single-mode (OM4) |
